Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT FENDER MUDGUARD LH (w/ Mudguard)

    Refer to PROCEDURE - Step 1

  3. REMOVE FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
    1. Remove the 4 screws and front wheel opening extension pad LH.

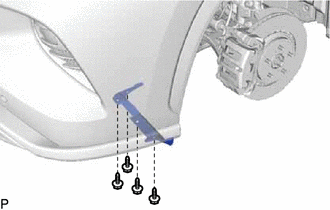

      GTY938310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT FENDER LINER LH
    1. Remove the 6 clips and 2 screws.

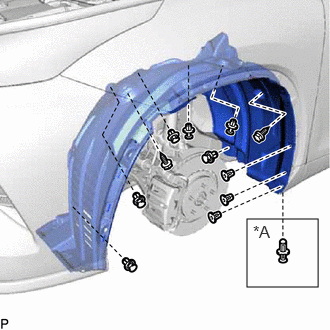

      GTY916967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Mudguard
    2. w/o Mudguard:
      1. Remove the clip.
    3. Remove the 3 grommets and front fender liner LH.
  6. REMOVE WIRELESS DOOR LOCK BUZZER
    1. Disconnect the connector.

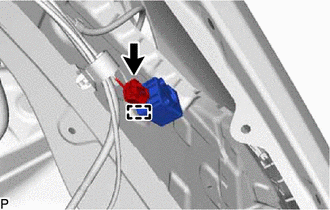

      GTY893239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the wireless door lock buzzer.
