Installation [12/2019 - ]: Procedure

  1. INSTALL REAR NO. 2 SEAT OUTER BELT ASSEMBLY

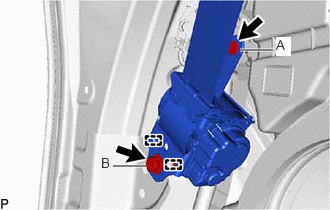

    1. Engage the 2 guides.
      GTY844618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the rear No. 2 seat outer belt assembly with the 2 bolts.
    3. Fully tighten the bolt (A) first, then the bolt (B).

      Bolt (A)

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

      Bolt (B)

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    4. Connect the shoulder anchor of the rear No. 2 seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  2. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 21 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - ]

  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 23 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - ]

  5. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)

    w/ Rear Automatic Air Conditioning System:

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  6. INSTALL ROPE HOOK

    Refer to PROCEDURE - Step 24 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - ]

  7. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 25 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - ]

  8. INSTALL DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 26 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - ]

  9. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

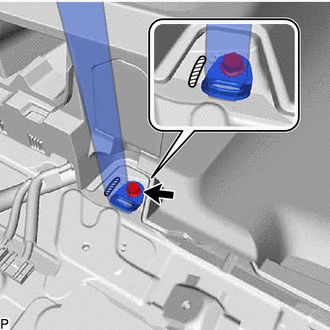

    1. Connect the floor anchor of the rear No. 2 seat outer belt assembly with the bolt.
      GTY915199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear No. 2 seat outer belt assembly to overlap the protruding part of the floor panel.

  10. INSTALL NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - ]

  11. CONNECT REAR SEAT OUTER BELT ASSEMBLY

    See step  11 [12/2019 - 10/2021], or See step  11 [10/2021 - ]

  12. INSTALL FRONT DECK SIDE TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  13. INSTALL FRONT DECK SIDE TRIM COVER LH (for LH Side)

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - ]

  14. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 58 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 56 [10/2022 - ]

  16. INSTALL REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 48 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 46 [10/2022 - ]

  17. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]

  18. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 65 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 63 [10/2022 - ]

  19. INSTALL DECK SIDE TRIM BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 66 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 64 [10/2022 - ]

  20. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 67 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 65 [10/2022 - ]

  21. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - ]

  22. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 69 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 67 [10/2022 - ]

  23. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 70 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 68 [10/2022 - ]

  24. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 69 [10/2022 - ]
