Installation [10/2021 - ]: Procedure

  1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

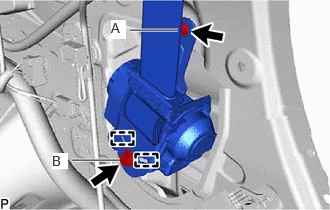

    1. Engage the 2 guides.
      GTY1116989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the rear seat outer belt assembly with the 2 bolts.
    3. Fully tighten the bolt (A) first, then the bolt (B).

      Bolt (A)

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

      Bolt (B)

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

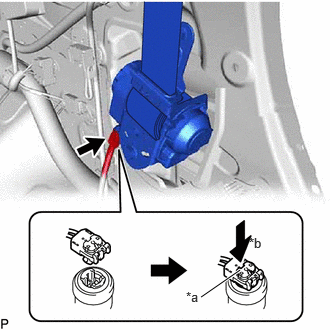

    4. Connect the pretensioner connector and lock the locking button as shown in the illustration.
      NOTE:

      Securely lock the locking button.

      GTY1115780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Lock
    5. Connect the shoulder anchor of the rear seat outer belt assembly with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  2. INSTALL QUARTER PILLAR GARNISH

    Refer to PROCEDURE - Step 22 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - ]

  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  4. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)

    w/ Rear Automatic Air Conditioning System

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 23 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - ]

  6. INSTALL ROPE HOOK

    Refer to PROCEDURE - Step 24 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - ]

  7. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 25 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - ]

  8. INSTALL DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 36 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 34 [10/2022 - ]

  9. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    See step  9

  10. INSTALL NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - ]

  11. CONNECT REAR SEAT OUTER BELT ASSEMBLY
    1. Connect the floor anchor of the rear seat outer belt assembly with the bolt.
      GTY913931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Parts

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

  12. INSTALL FRONT DECK SIDE TRIM COVER RH (for RH Side)

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  13. INSTALL FRONT DECK SIDE TRIM COVER LH (for LH Side)

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - ]

  14. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 47 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 45 [10/2022 - ]

  16. INSTALL REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 48 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 46 [10/2022 - ]

  17. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]

  18. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 65 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 63 [10/2022 - ]

  19. INSTALL DECK SIDE TRIM BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 66 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 64 [10/2022 - ]

  20. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 67 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 65 [10/2022 - ]

  21. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - ]

  22. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 69 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 67 [10/2022 - ]

  23. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 70 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 68 [10/2022 - ]

  24. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 71 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 69 [10/2022 - ]
