Removal [12/2019 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY

    See step  1

  2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH

    See step  2

  3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Gasoline Model)

    HINT:

    Use the same procedure as for the front outer seat track bracket cover LH.

  4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for HV Model)

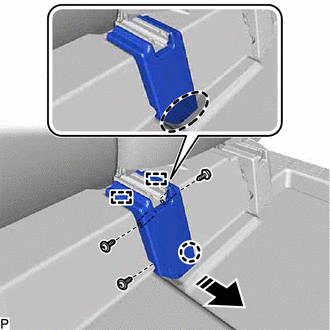

    1. Remove the 3 screws.
      GTY919061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the claw and 2 guides as shown in the illustration to remove the front inner seat track bracket cover LH.
  5. REMOVE REAR INNER SEAT TRACK BRACKET COVER LH

    See step  5

  6. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    See step  6

  7. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  8. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
    1. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the rearmost position.
    2. Disconnect the connector.
      GTY893746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

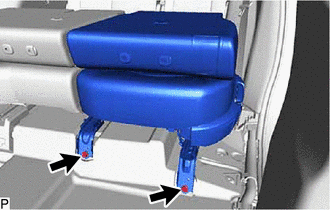

    3. Remove the 2 bolts.
      GTY938424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the foremost position.

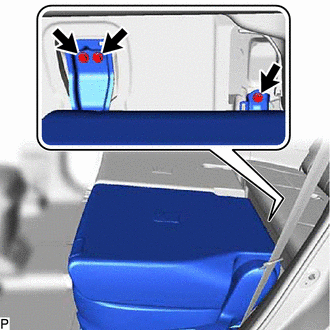

    5. Remove the 3 bolts.
      GTY893747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

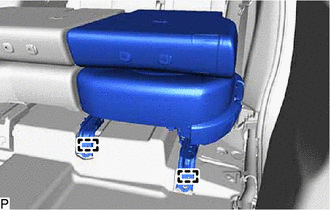

    6. Disengage the 2 pins and remove the rear No. 1 seat assembly LH.
      GTY938423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the rear No. 1 seat assembly LH, vehicle body or vehicle interior.
