Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

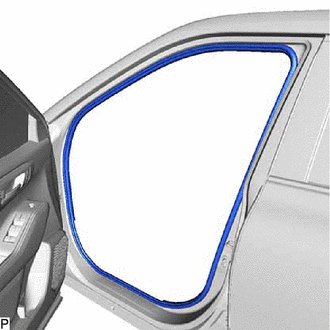

    1. Remove the front door opening trim weatherstrip.
      GTY892248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
