Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  2. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 4

  3. REMOVE MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 2

  4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for 8 Inch Display)
    1. Remove the 2 screws.
      GTY918144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and 2 guides to remove the air conditioning control assembly.
  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for 12.3 Inch Display)

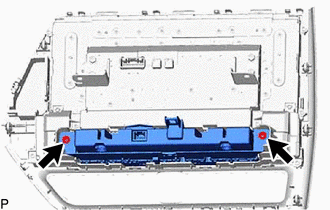

    1. Remove the 2 screws and air conditioning control assembly.
      GTY918145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
