Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  2. REMOVE MULTI-DISPLAY WITH AIR CONDITIONING CONTROL

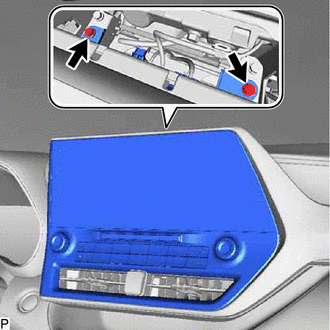

    1. Remove the 2 bolts.
      GTY916392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

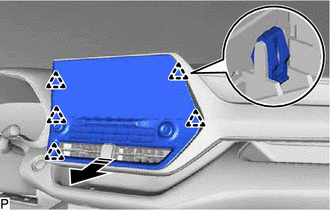

    2. Pull the multi-display with air conditioning control as shown in the illustration to disengage the 5 clips.
      GTY893390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

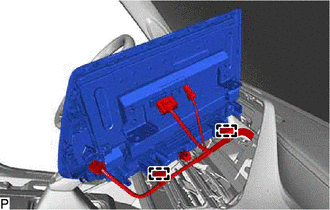

    3. Disconnect each connector.
    4. Disengage the 2 clamps to remove the multi-display with air conditioning control.
      GTY916378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 5

  4. REMOVE TELLTALE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE MULTI-DISPLAY ASSEMBLY
