Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE REAR CONSOLE COVER

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  4. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

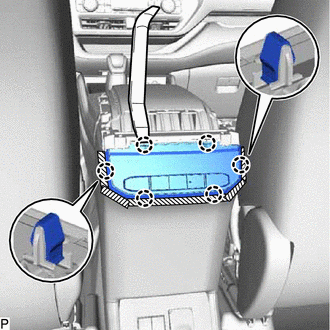

    1. Apply protective tape around the No. 2 air conditioning control assembly.
      GTY844839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, disengage the 6 claws.

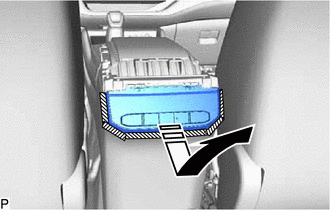

    3. Disconnect the No. 2 air conditioning control assembly as shown in the illustration.
      GTY930371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction

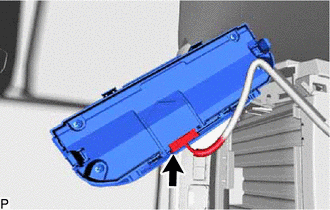

    4. Disconnect the connector to remove the No. 2 air conditioning control assembly.
      GTY923916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
