Disposal [12/2019 - 11/2023]: Procedure

  1. PRECAUTION
    WARNING:
    • An airbag or pretensioner may be accidentally deployed by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
    • Never dispose of an instrument panel passenger airbag assembly with an undeployed airbag.
      GTY580270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors where it will not disturb nearby residents.
      GTY572529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • When deploying the airbag, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical noise.
    • When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the instrument panel passenger airbag assembly.
    • The instrument panel passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling an instrument panel passenger airbag assembly with a deployed airbag.
    • Do not apply water, etc. to an instrument panel passenger airbag assembly with a deployed airbag.
    • Always wash your hands with water after completing the operation.

    HINT:

    When scrapping a vehicle equipped with an SRS or disposing of the instrument panel passenger airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

  2. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (When Installed to Vehicle)
    NOTE:
    • When disposing of an instrument panel passenger airbag assembly, never use the customer's vehicle to deploy the airbag.
    • Be sure to perform the following procedure when deploying the airbag.

    HINT:

    Prepare an auxiliary battery as the power source to deploy the airbag.

    1. Check the function of SST.

      See step  2

      GTY382981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
    2. Refer to Precaution.

      Refer to PRECAUTION [12/2019 - 11/2023]

    3. Remove the battery service hole cover (for HV Model).

      Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 11/2023]

    4. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the lower instrument panel sub-assembly.

      Refer to PROCEDURE - Step 32 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - 11/2023]

    6. Disconnect the No. 2 instrument panel wire.

      See step  3 [12/2019 - 10/2022], or See step  3 [10/2022 - 11/2023]

    7. Install SST.
      WARNING:

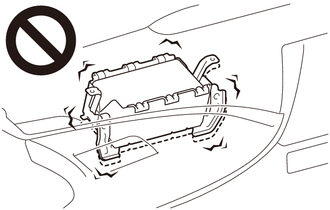

      Check that there is no looseness in the instrument panel passenger airbag assembly or instrument panel safety pad sub-assembly.

      GTY580279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

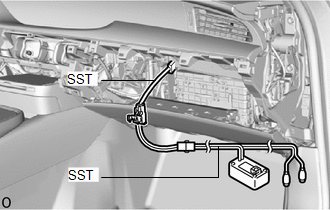

      1. After connecting the following SST to each other, connect them to the No. 2 instrument panel wire.
        GTY849526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09082-00700
        • SST: 09082-00780
        NOTE:

        To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

      2. Move SST at least 10 m (32.8 ft.) away from the front side window of the vehicle.
        GTY444662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Auxiliary Battery
        *b 10 m (32.8 ft.) or more
      3. Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.
        NOTE:

        Take care not to damage the SST wire harness.

      4. Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.
    8. Deploy the airbag.
      1. Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.
      2. Press the SST activation switch to deploy the airbag.
        WARNING:
        • Before deployment, make sure that no one is inside or near the vehicle.
          GTY577536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • The instrument panel passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
          GTY547197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • Use gloves and safety glasses when handling an instrument panel passenger airbag assembly with a deployed airbag.
          GTY580275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

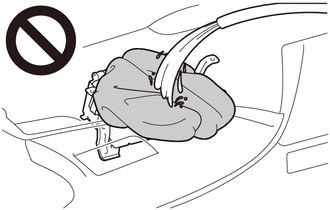

        • Do not apply water, etc. to an instrument panel passenger airbag assembly with a deployed airbag.
          GTY580277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • Always wash your hands with water after completing the operation.

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

  3. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (When not Installed to Vehicle)
    NOTE:

    Be sure to perform the following procedure when deploying the airbag.

    HINT:

    Prepare an auxiliary battery as the power source to deploy the airbag.

    1. Check the function of SST.

      See step  3

      GTY446883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
    2. Remove the instrument panel passenger airbag assembly.

      Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

      WARNING:
      • Before removing the instrument panel passenger airbag assembly, wait at least 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) auxiliary battery terminal.
        GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

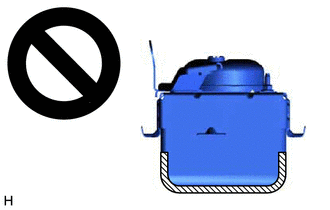

      • When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
        GTY603271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Deployment Side
    3. Install SST.
      1. After connecting the following SST to each other, connect them to the instrument panel passenger airbag assembly.
        • SST: 09082-00802
          1. 09082-10801
          2. 09082-30801
        GTY776107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using braided wire, tie down the instrument panel passenger airbag assembly to an unneeded tire.
      GTY430873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Diameter
      *b Stripped Wire Cross Sectional Area

      Wire

      Stripped Wire Cross Sectional Area

      1.25 mm2 (0.0019 in.2 ) or more

      WARNING:

      If the wire is too thin or an alternative object is used to tie down the instrument panel passenger airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2 ).

      HINT:

      To calculate the cross sectional area of the stripped wire:

      Cross sectional area = 3.14 x (Diameter)2 / 4

      1. Position the instrument panel passenger airbag assembly inside the tire with the airbag deployment side facing inward.

        Minimum Tire Size

        Width

        185 mm (7.28 in.)

        Inner Diameter

        360 mm (1.18 ft.)

        GTY794280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

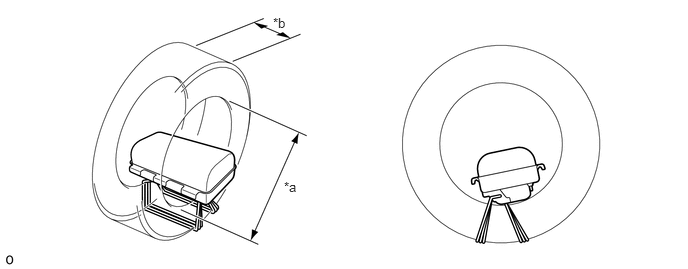

        *a Inner Diameter *b Width
        WARNING:
        • Make sure that the wires are tight. If there is slack in the wires, the instrument panel passenger airbag assembly may break loose when the airbag is deployed.
        • Always tie down the instrument panel passenger airbag assembly with the airbag deployment side facing inside the tire.
          GTY789880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          Deployment Side
        NOTE:

        The tire may be damaged by the airbag deployment, so use an unneeded tire.

    5. Place the tires.
      1. Place at least 2 tires under the tire to which the instrument panel passenger airbag assembly is tied.
        GTY834850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

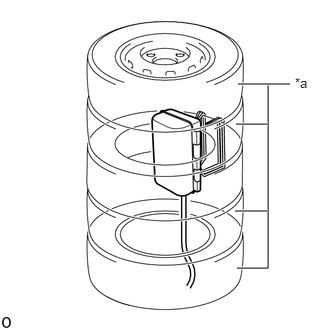

        *a Tires (2 or more)

        Minimum Tire Size

        Width

        185 mm (7.28 in.)

        Inner Diameter

        360 mm (1.18 ft.)

        NOTE:

        Do not place the SST connector under the tire because it could be damaged.

      2. Place at least 2 tires onto the tire to which the instrument panel passenger airbag assembly is tied. The top tire should have a wheel installed.
        NOTE:

        The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

      3. Tie the tires together with 2 wires.
        GTY307039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:

        Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

    6. Install SST.
      1. Connect the SST connector.
        GTY931365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

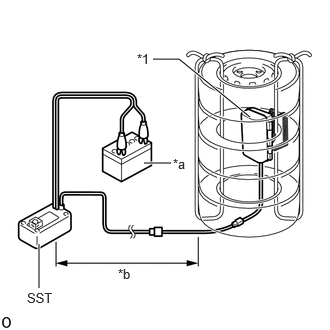

        *1 Instrument Panel Passenger Airbag Assembly
        *a Auxiliary Battery
        *b 10 m (32.8 ft.) or more
        • SST: 09082-00700
        NOTE:

        To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

      2. Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.
    7. Deploy the airbag.
      1. Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.
      2. Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the instrument panel passenger airbag assembly is tied.
      3. Press the SST activation switch to deploy the airbag.
        WARNING:

        Before deployment, make sure that no one is near the airbag.

        GTY604830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

    8. Dispose of the instrument panel passenger airbag assembly.
      WARNING:
      • The instrument panel passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        GTY606839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

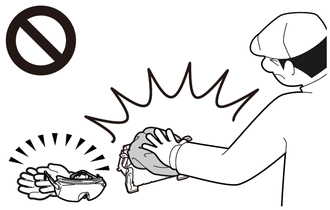

      • Use gloves and safety glasses when handling an instrument panel passenger airbag assembly with a deployed airbag.
        GTY580273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Do not apply water, etc. to an instrument panel passenger airbag assembly with a deployed airbag.
        GTY580274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Always wash your hands with water after completing the operation.
      1. Remove the instrument panel passenger airbag assembly from the tire.
      2. Place the instrument panel passenger airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
