Replacement [12/2019 - ]: Procedure

  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

  2. REMOVE DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 19 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

  3. REMOVE TRANSFER CASE OIL SEAL RH
    1. Using SST, remove the transfer case oil seal RH from the transfer assembly.
      • SST: 09308-00010
      NOTE:

      Do not scratch the press-fitting surface of the transfer case oil seal RH.

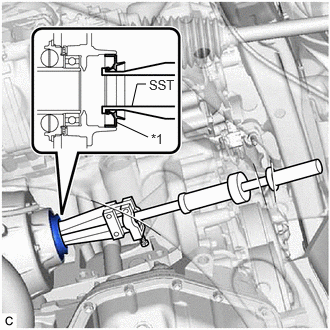

      GTY860803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal RH
  4. INSTALL TRANSFER CASE OIL SEAL RH
    1. Coat the lip of a new transfer case oil seal RH with MP grease.
    2. Using SST and a hammer, tap in the transfer case oil seal RH to the transfer assembly as shown in the illustration.
      • SST: 09631-32020
      • SST: 09950-60021
        1. 09951-00680
      • SST: 09950-70010
        1. 09951-07360

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
      • Do not tap the transfer case oil seal RH in too far.

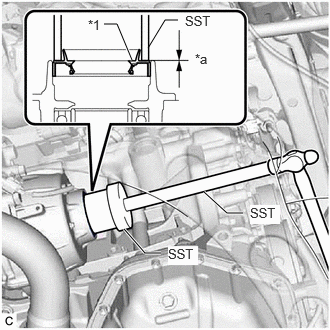

      GTY876319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal RH
      *a Depth
  5. INSTALL DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 54 [10/2022 - ]

  6. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
