Adjustment [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  4. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 42

  5. ADJUST SHIFT LEVER POSITION
    NOTE:

    Before adjusting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

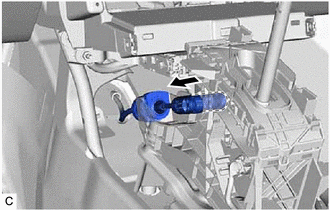

    1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY943719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.
      GTY440136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider
      *b Lock Piece
      *c Slide
      *d Pull
    3. Connect the transmission control cable assembly to the transmission floor shift assembly.
      NOTE:
      • Check that the lock piece is pulled out.
      • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
      • Connect the transmission control cable assembly so that the lock piece faces the driver side.
      GTY915555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Piece
      *b Adjuster Case
    4. Push the lock piece into the adjuster case.
      GTY615783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Piece
      *b Push in
      *c Adjuster Case
      NOTE:
      • Check that the park/neutral position switch assembly and shift lever are in N.
      • Securely push in the lock piece until the slider lock is engaged.
      • When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.
        GTY928110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Transmission Control Cable Assembly
        *a Lever Shaft
      • When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.
    5. After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.
  6. INSTALL FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 4

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  8. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 26

  9. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]
