Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE BATTERY SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 1

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for 2GR-FKS:

    Refer to PROCEDURE - Step 1

    for A25A-FXS:

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 16

  8. REMOVE QUARTER WINDOW UPPER STOP

    Refer to PROCEDURE - Step 18

  9. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 19

  10. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 20

  11. DISCONNECT REAR DOOR WEATHERSTRIP

    Refer to PROCEDURE - Step 7

  12. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  13. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 22

  14. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  15. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

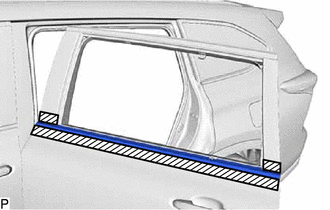

    1. Apply protective tape around the rear door belt moulding assembly as shown in the illustration.
      GTY871399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

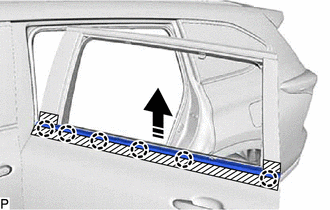

    2. Disengage the 6 claws to remove the rear door belt moulding assembly as shown in the illustration.
      GTY888209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
