Installation [12/2019 - ]: Procedure

  1. INSTALL FUEL LID OPENER SWITCH
    1. Connect the connector.

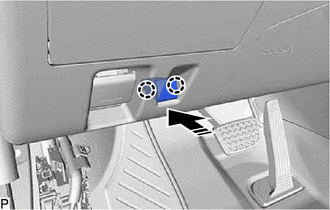

    2. Engage the 2 claws to install the fuel lid opener switch as shown in the illustration.
      GTY840062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - ]

  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 51 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  4. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 52 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 50 [10/2022 - ]
