Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION (for 8 Inch Display)
    NOTE:
    • After performing any of the following procedures, the navigation system may restart after turning the ignition switch to ACC for the first time (due to radio and display receiver assembly and navigation ECU certification).
      • Disconnecting and reconnecting the cable from the negative (-) terminal of the auxiliary battery, replacing the auxiliary battery, or recharging the auxiliary battery after being discharged.
      • Removing and installing or replacing the radio and display receiver assembly or navigation ECU.
    • After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio and display receiver assembly.

    Refer to PRECAUTION [12/2019 - 10/2022]

  2. PRECAUTION (for 12.3 Inch Display)
    NOTE:
    • After performing any of the following procedures, the navigation system may restart after turning the ignition switch to ACC for the first time (due to radio receiver assembly and navigation ECU certification).
      • Disconnecting and reconnecting the cable from the negative (-) terminal of the auxiliary battery, replacing the auxiliary battery, or recharging the auxiliary battery after being discharged.
      • Removing and installing or replacing the radio receiver assembly or navigation ECU.
    • After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.

    Refer to PRECAUTION [12/2019 - 10/2022]

  3. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  4. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9

  5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  7. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20

  8. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 29

  11. REMOVE INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 30

  12. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  13. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  14. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 40

  15. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 41

  16. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 42

  17. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 15

  18. REMOVE NAVIGATION ECU WITH BRACKET

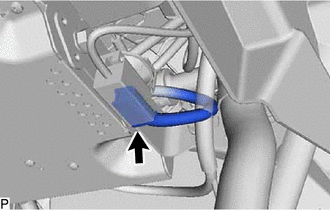

    1. Disconnect the connector.
      GTY846706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

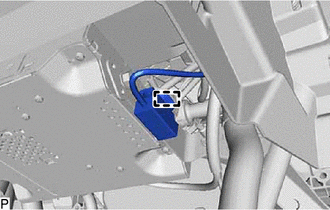

    2. Disengage the clamp.
      GTY846707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

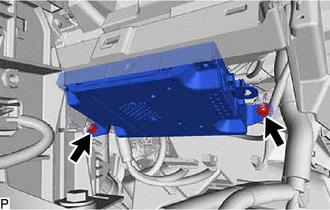

    3. Remove the 2 nuts.
      GTY928064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector and remove the navigation ECU with bracket.
  19. REMOVE RADIO WIRING SUB-ASSEMBLY
    1. Disconnect the connector to remove the radio wiring sub-assembly.
      GTY846708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ANTENNA CORD SUB-ASSEMBLY

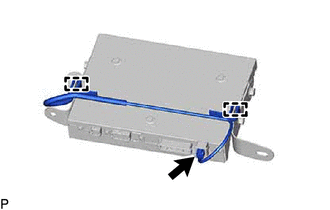

    1. Disconnect the connector.
      GTY846700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to remove the antenna cord sub-assembly.
  21. REMOVE NO. 3 RADIO RECEIVER BRACKET
    1. Remove the 2 screws and No. 3 radio receiver bracket.
      GTY846701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 4 RADIO RECEIVER BRACKET

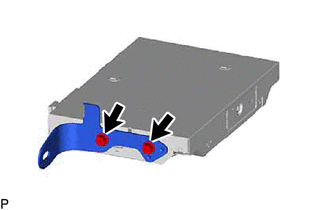

    1. Remove the 2 screws and No. 4 radio receiver bracket.
      GTY846702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NAVIGATION ECU
