Removal [09/2020 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 19 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 19 [11/2023 - ]

• for Sport Package

  Refer to PROCEDURE - Step 1

• except Sport Package

  Refer to PROCEDURE - Step 1 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

Refer to PROCEDURE - Step 6 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 6 [11/2023 - ]

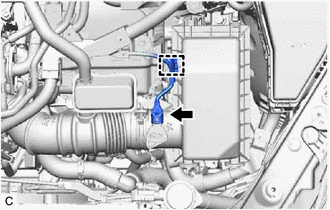

1. Disconnect the mass air flow meter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the wire harness clamp.
3. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

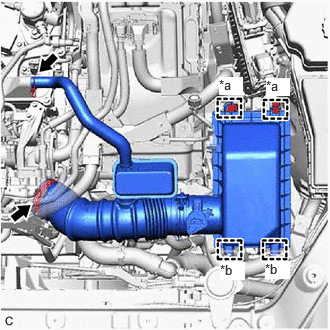

   *a	Air Cleaner Cap Clamp
   *b	Guide

4. Disengage the 2 air cleaner cap clamps.
5. Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.
6. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

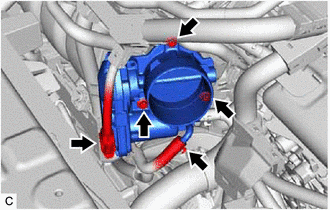

1. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Slide the clip and disconnect the No. 5 water by-pass hose from the throttle body with motor assembly.
3. Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

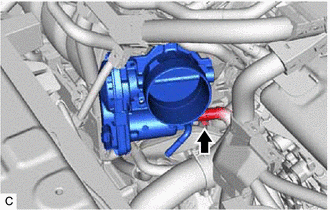

4. Slide the clip and disconnect the No. 6 water by-pass hose to remove the throttle body with motor assembly.
   NOTE:

   If the throttle body with motor assembly has been struck or dropped, replace it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

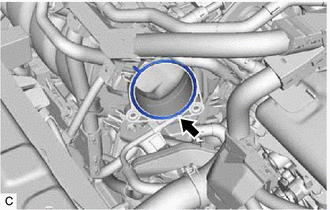

1. Remove the throttle body gasket from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
