Removal [12/2019 - 10/2022]: Procedure

REMOVE NO. 2 CONSOLE BOX CUSHION
Refer to PROCEDURE - Step 1
REMOVE CONSOLE BOX CUSHION
Refer to PROCEDURE - Step 2
REMOVE FRONT CONSOLE BOX COVER
Refer to PROCEDURE - Step 3
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
for UA80E: Refer to PROCEDURE - Step 1

for UA80F: Refer to PROCEDURE - Step 1

for P810: Refer to PROCEDURE - Step 1
REMOVE CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE NO. 1 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE NO. 2 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 40

REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

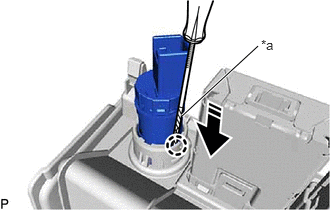

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Remove in this Direction

REMOVE NO. 1 POWER OUTLET SOCKET COVER

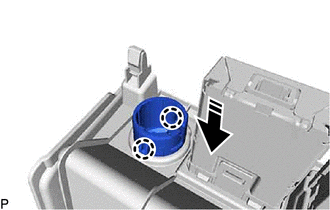

Disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE USB CHARGER SOCKET

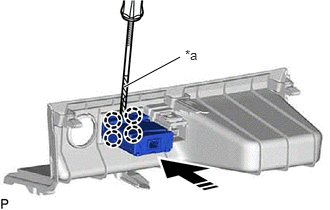

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and remove the USB charger socket as shown in the illustration.

*a	Protective Tape
	Remove in this Direction
