Installation [10/2022 - ]: Procedure

  1. INSTALL NO. 2 POWER OUTLET SOCKET COVER

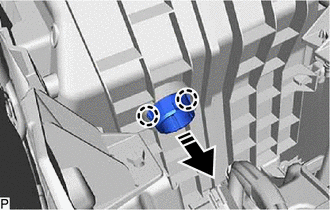

    1. Engage the 2 claws to install the No. 2 power outlet socket cover as shown in the illustration.
      GTY910591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 2 POWER OUTLET SOCKET ASSEMBLY

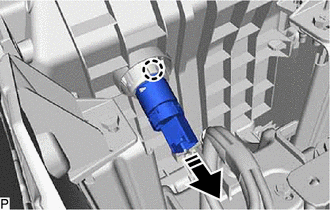

    1. Engage the claw to install the No. 2 power outlet socket assembly as shown in the illustration.
      GTY899131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  3. INSTALL CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    for UA81E / UA81F: Refer to PROCEDURE - Step 1

    for P810: Refer to PROCEDURE - Step 1

  5. INSTALL FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 11

  6. INSTALL CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 12

  7. INSTALL NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 13
