Installation [12/2019 - ]: Procedure

  1. INSTALL NO. 2 USB CHARGER SOCKET
    1. Engage the 4 claws to install the No. 2 USB charger socket as shown in the illustration.

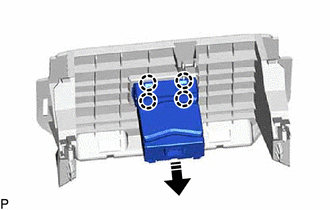

      GTY843082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 3 POWER OUTLET SOCKET ASSEMBLY (w/ Voltage Inverter)
    1. Engage the 2 claws to install the No. 3 power outlet socket assembly as shown in the illustration.

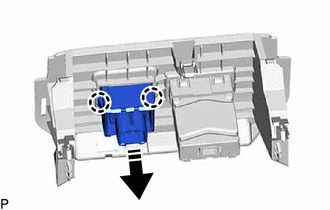

      GTY918560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  4. INSTALL REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]
