Installation [12/2019 - ]: Procedure

  1. INSTALL REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

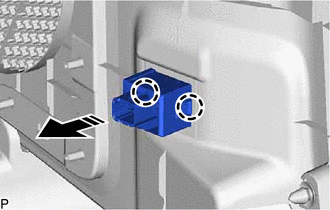

    1. Engage the 2 claws to install the rear No. 1 power outlet socket assembly as shown in the illustration.
      GTY875591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 23 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - ]

  3. INSTALL ROPE HOOK

    Refer to PROCEDURE - Step 24 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - ]

  4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 25 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - ]

  5. INSTALL DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 26 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - ]

  6. INSTALL NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - ]

  7. INSTALL FRONT DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - ]

  8. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  9. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 47 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 45 [10/2022 - ]

  10. INSTALL REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 48 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 46 [10/2022 - ]

  11. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 65 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 63 [10/2022 - ]

  12. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - ]
