Installation [12/2019 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FUEL PRESSURE SENSOR

    HINT:

    Perform "Inspection After Repair" after replacing the fuel pressure sensor.

    Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]

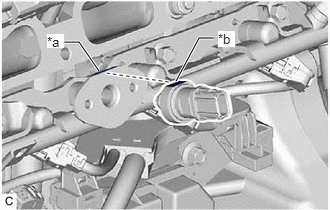

    1. Temporarily install a new fuel pressure sensor to the fuel delivery pipe as shown in the illustration.
      GTY746244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout (Fuel Delivery Pipe)
      *b Cutout (Fuel Pressure Sensor)
      NOTE:

      Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.

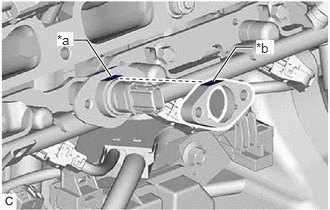

    2. Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe as shown in the illustration.
      GTY748177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout (Fuel Pressure Sensor)
      *b Cutout (No. 1 Fuel Pressure Sensor Holder)
      NOTE:

      Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.

    3. Using an 8 mm socket wrench, install the 2 bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    4. Connect the fuel pressure sensor connector.
  2. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [12/2019 - 10/2021] , or refer to INSTALLATION [10/2021 - ]

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. INSTALL BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 68 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 66 [10/2022 - ]

  5. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  6. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after replacing the fuel pressure sensor.

      Refer to INITIALIZATION [12/2019 - 10/2021] , or refer to INITIALIZATION [10/2021 - ]
