Removal [12/2019 - 10/2021]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2019 - 11/2023]

  3. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 4

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - ]

  6. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2021]

  7. REMOVE NO. 2 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 7

  8. DISCONNECT FUEL TUBE SUB-ASSEMBLY

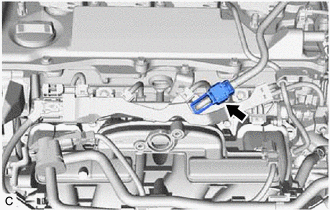

    1. Remove the fuel pipe clamp from the fuel tube connector.
      GTY760014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube sub-assembly from the fuel pump assembly and fuel delivery pipe sub-assembly.
      GTY880704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [12/2019 - 11/2023]

  9. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

    1. Disconnect the ignition coil connector.
      GTY814962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for EGR Valve Bracket Connection Type:

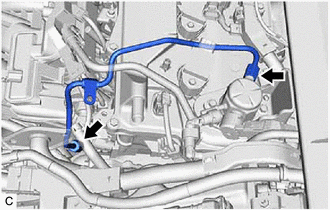

      1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
        GTY880697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. for Cylinder Head Cover Sub-assembly Connection Type:
      1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
        GTY1001860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Union Nut
        Bolt
      2. Using an 8 mm socket wrench, remove the bolt.
    4. Loosen the 2 bolts of the fuel pump assembly.
      GTY880698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe and fuel pump assembly.
  10. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

    Refer to PROCEDURE - Step 9

  11. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

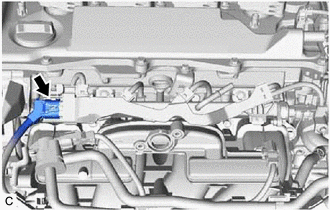

    1. Disconnect the No. 5 engine wire connector.
      GTY760009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

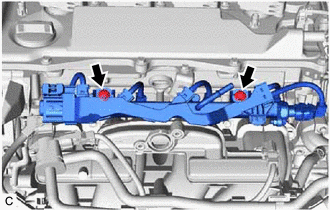

    2. Remove the 2 bolts and fuel delivery pipe sub-assembly with the 4 port fuel injector assemblies from the cylinder head sub-assembly.
      GTY773619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
      • Be careful not to drop the port fuel injector assemblies when removing the fuel delivery pipe sub-assembly.
  12. REMOVE NO. 1 DELIVERY PIPE SPACER

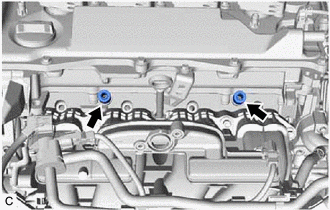

    1. Remove the 2 No. 1 delivery pipe spacers from the cylinder head sub-assembly.
      GTY760008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE INJECTOR VIBRATION INSULATOR

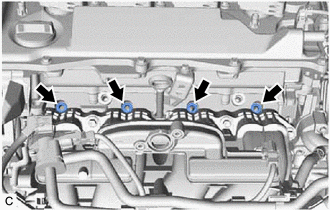

    1. Remove the 4 injector vibration insulators from the cylinder head sub-assembly.
      GTY760011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 5 ENGINE WIRE

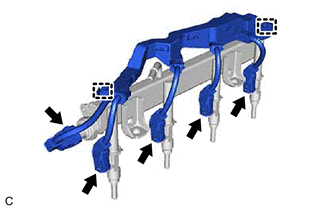

    1. Disconnect the 4 port fuel injector assembly connectors and No. 2 fuel pressure sensor connector.
      GTY771589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to remove the No. 5 engine wire from the fuel delivery pipe sub-assembly.
  15. REMOVE PORT FUEL INJECTOR ASSEMBLY
    1. Pull the 4 port fuel injector assemblies out of the fuel delivery pipe sub-assembly.
      GTY754430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from each port fuel injector assembly.
      GTY754415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach a tag or label with the corresponding cylinder number to each port fuel injector assembly so that they can be installed to their original locations.
      NOTE:

      Cover the port fuel injector assemblies with plastic bags to prevent damage and contamination.

      GTY766507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
