Installation [12/2019 - 10/2022]: Procedure

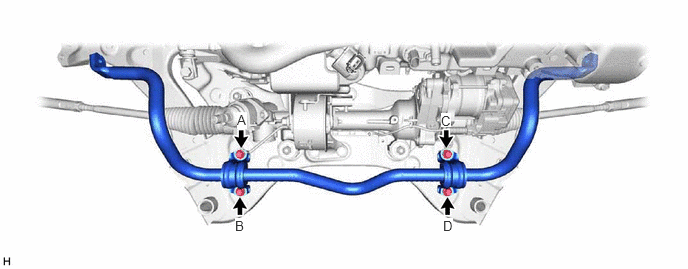

1. Install the front stabilizer bar sub-assembly to the front frame assembly with the 4 bolts.

   Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

   NOTE:

   Temporarily tighten the bolts in the order of (D), (C) and (B), and then fully tighten the 4 bolts in the order of (A), (B), (C), and (D).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front stabilizer link assembly LH to the front stabilizer bar sub-assembly with the nut.

   Torque: 74 N.m (755 kgf/cm, 55 ft.lbf)

   NOTE:

   Do not damage the boot of the ball joint.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

HINT:

Perform the same procedure as for the LH side.

for A25A-FXS: Refer to PROCEDURE - Step 22

for 2GR-FKS: Refer to PROCEDURE - Step 22 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 22 [09/2020 - 10/2022]
