Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION

    Refer to PRECAUTION [12/2019 - 11/2023]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [10/2022 - 11/2023]

  3. REMOVE NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 9

  4. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  4

  5. REMOVE CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 11

  6. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 12

  7. INSTALL CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. CONNECT ENGINE ROOM MAIN WIRE

    See step  31

  9. INSTALL NO. 2 INVERTER PROTECTOR

    Refer to PROCEDURE - Step 17

  10. REMOVE REAR NO. 1 SEAT ASSEMBLY LH (for 60/40 Split Seat Type)

    Refer to REMOVAL [12/2019 - ]

  11. REMOVE REAR NO. 1 SEAT ASSEMBLY RH (for 60/40 Split Seat Type)

    Refer to REMOVAL [12/2019 - ]

  12. REMOVE REAR NO. 1 SEAT ASSEMBLY (for Captain Seat Type)

    Refer to REMOVAL [12/2019 - ]

  13. REMOVE REAR CONSOLE BOX ASSEMBLY (for Captain Seat Type)

    Refer to REMOVAL [12/2019 - ]

  14. SEPARATE FRONT FLOOR CARPET ASSEMBLY

    See step  5

  15. REMOVE REAR FLOOR SILENCER

    See step  6

  16. REMOVE NO. 10 HV BATTERY SHIELD PANEL

    Refer to PROCEDURE - Step 20

  17. DISCONNECT FLOOR UNDER WIRE

    Refer to PROCEDURE - Step 21

  18. DISCONNECT FLOOR WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Disengage the clamp.

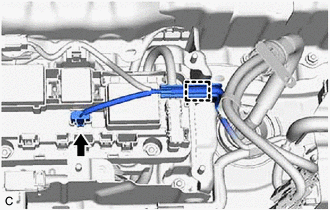

      GTY880478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the HV battery junction block assembly connector.
    3. w/ 1500w Voltage Inverter
      1. Disconnect the 2 HV battery junction block assembly connectors.
        NOTE:

        Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

        GTY930285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shield Ground
      2. Using a screwdriver disengage the claw.
      3. Remove the nut and disconnect the shield ground.
    4. Disconnect the electric vehicle battery plug assembly connector.
      GTY935472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 3 clamps to disconnect the floor wire.
  19. REMOVE NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

    1. Remove the bolt and disconnect the electric vehicle battery plug assembly.

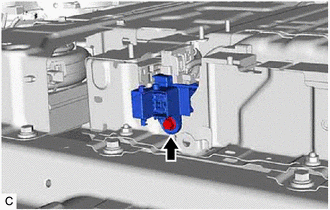

      GTY881144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 nuts and No. 1 hybrid battery shield sub-assembly.

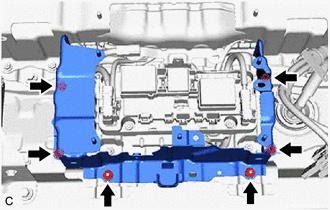

      GTY881018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE HYBRID BATTERY TERMINAL BLOCK
    WARNING:

    Be sure to wear insulated gloves.

    1. Disconnect the 2 hybrid battery terminal block connectors.

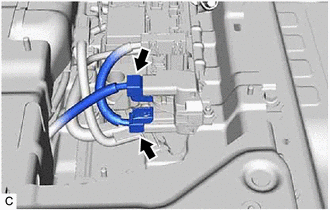

      GTY881146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate the disconnected high-voltage connectors with insulating tape.

    2. Remove the nut and the hybrid battery terminal block from the HV battery.

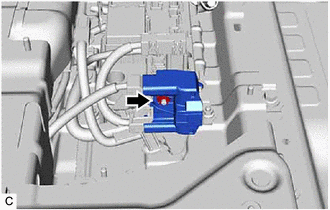

      GTY881145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
