Engine Control System (2GR-FKS) - Diagnostic Codes (6 Of 6) & Circuit Tests (1 Of 2)
>>
SFI System
>>
VC Output Circuit [12/2019 - 10/2022]
>>
Wiring Diagram
VC Output Circuit [12/2019 - 10/2022]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
WIRING DIAGRAM

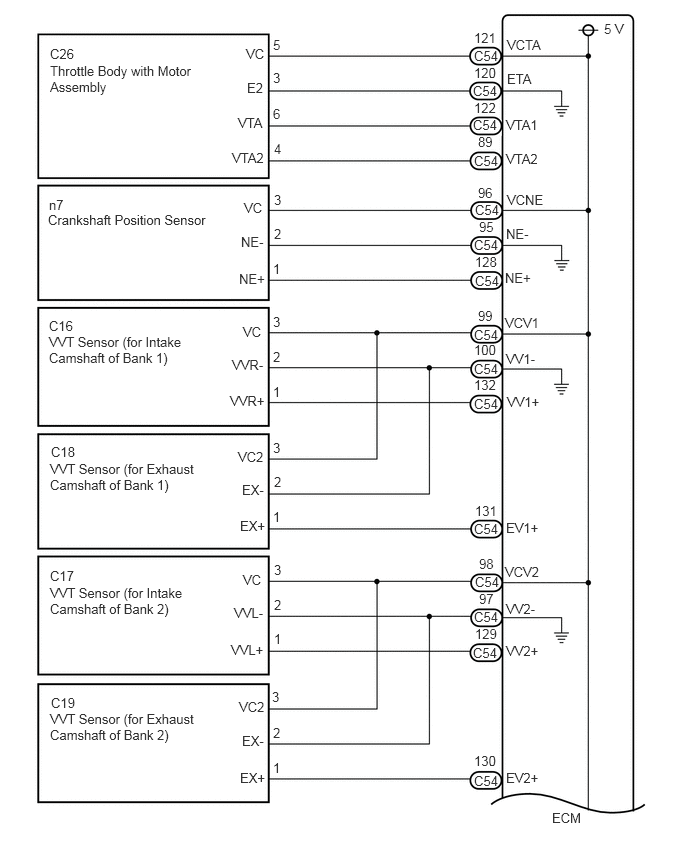

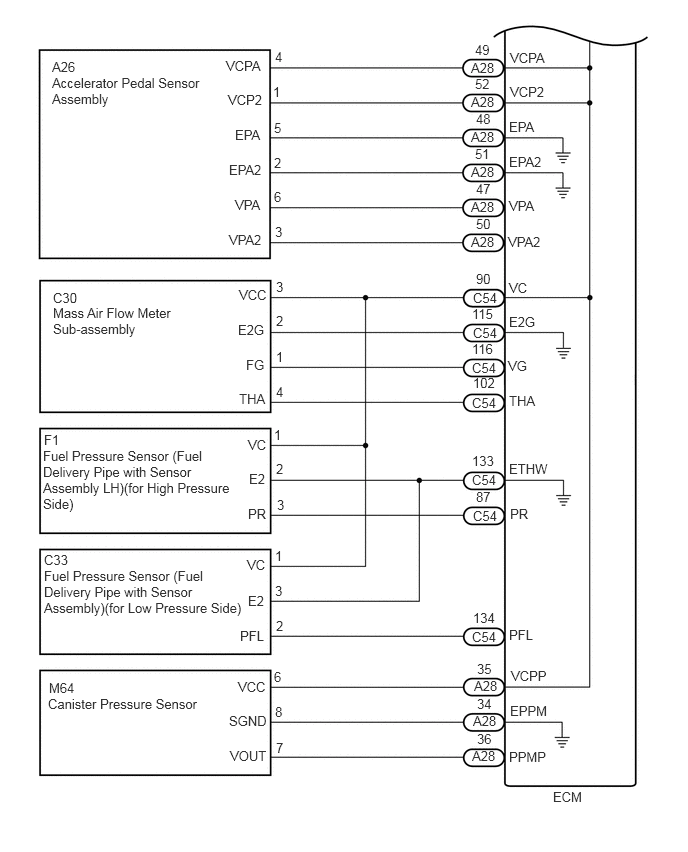

VC Output Circuit
