Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 1 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - 10/2021] , or refer to PROCEDURE - Step 1 [10/2021 - 10/2022]

  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 10/2021] , or refer to PROCEDURE - Step 2 [10/2021 - 10/2022]

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  4. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32

  5. REMOVE ENGINE OIL LEVEL SENSOR

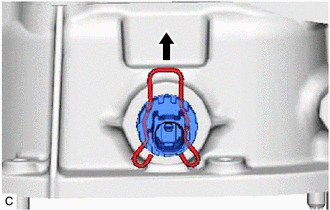

    1. Remove the clip from the engine oil level sensor.
      GTY761248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

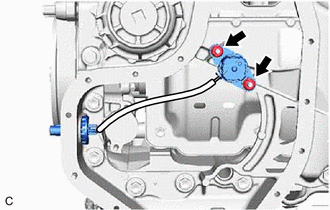

    2. Remove the 2 nuts and engine oil level sensor from the oil pan sub-assembly.
      GTY886944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
