Adjustment [09/2020 - ]: Procedure

See step  1

1. Horizontally and vertically adjust the hood.

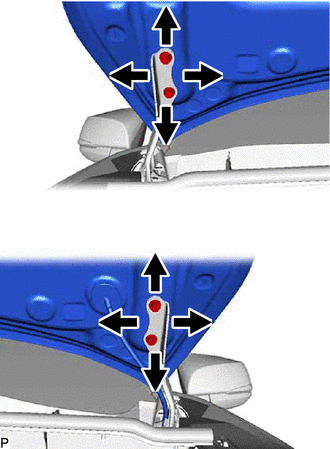

   1. Loosen the 4 hinge bolts of the hood.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Adjust the clearance between the hood and front fenders by moving the hood.
   3. Tighten the 4 hinge bolts after adjustment.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

2. Adjust the height of the front end of the hood using the hood bumper cushions.

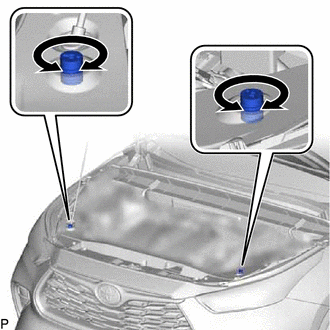

   1. Adjust the 2 hood bumper cushions so that the heights of the hood and fenders are aligned.

      HINT:

      Raise or lower the front end of the hood by turning the 2 hood bumper cushions.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Adjust the hood lock.
   1. Remove the cool air intake duct seal.

      for except Sport Package:

      Refer to PROCEDURE - Step 1 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]

      for Sport Package:

      Refer to PROCEDURE - Step 1

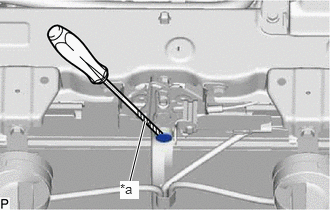

   2. Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Protective Tape

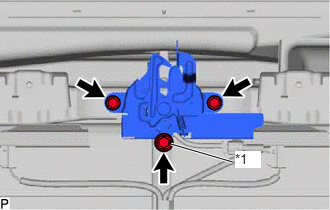

   3. Loosen the 2 bolts and hood lock bolt.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	Hood Lock Bolt

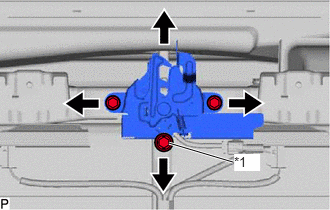

   4. Adjust the hood lock assembly and tighten the 2 bolts and hood lock bolt.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	Hood Lock Bolt

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   5. Check that the striker can engage the hood lock assembly smoothly.

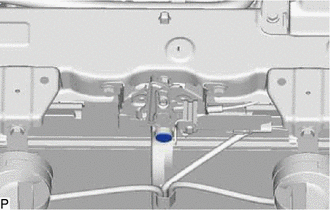

   6. Install a new hood lock nut cap.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   7. Install the cool air intake duct seal.

      for except Sport Package:

      Refer to PROCEDURE - Step 4

      for Sport Package:

      Refer to PROCEDURE - Step 4
