Installation [12/2019 - ]: Procedure

  1. INSTALL REAR TELEVISION CAMERA ASSEMBLY
  2. INSTALL INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 1

  3. INSTALL CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  4. INSTALL CAMERA CLEANER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL TELEVISION CAMERA ASSEMBLY WITH NOZZLE (w/o Digital Inner Mirror)
    1. Engage the 2 claws to temporarily install the television camera assembly with nozzle as shown in the illustration.

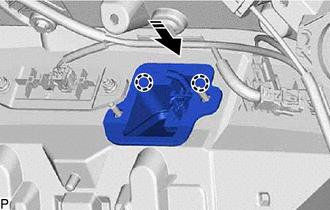

      GTY934686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the television camera assembly with nozzle with the 2 nuts.
    3. Connect the connector.
    4. Connect the washer hose.
  6. INSTALL TELEVISION CAMERA ASSEMBLY WITH NOZZLE (w/ Digital Inner Mirror)
    1. Engage the 2 claws to temporarily install the television camera assembly with nozzle as shown in the illustration.

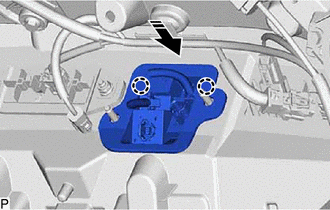

      GTY1109815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the television camera assembly with nozzle with the 2 nuts.
    3. Connect the 2 connectors.
    4. Connect the 2 washer hoses.
  7. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 35

  8. INSTALL BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 36

  9. INSTALL BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  10. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

    Refer to CALIBRATION [12/2019 - 10/2022] , or refer to CALIBRATION [10/2022 - ]

  11. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

    Refer to CALIBRATION [12/2019 - 10/2022] , or refer to CALIBRATION [10/2022 - 11/2023] , or refer to CALIBRATION [11/2023 - ]
