Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION (for 8 Inch Display)
    1. for Audio and Visual System:

      Refer to PRECAUTION [12/2019 - 10/2022]

    2. for Navigation System:
      NOTE:
      • After performing any of the following procedures, the navigation system may restart after turning the ignition switch to ACC for the first time (due to radio and display receiver assembly and navigation ECU certification).
        • Disconnecting and reconnecting the cable from the negative (-) terminal of the auxiliary battery, replacing the auxiliary battery, or recharging the auxiliary battery after being discharged.
        • Removing and installing or replacing the radio and display receiver assembly or navigation ECU.
      • After replacing the radio and display receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

      Refer to PRECAUTION [12/2019 - 10/2022]

  2. PRECAUTION (for 12.3 Inch Display)
    NOTE:
    • After performing any of the following procedures, the navigation system may restart after turning the ignition switch to ACC for the first time (due to radio receiver assembly and navigation ECU certification).
      • Disconnecting and reconnecting the cable from the negative (-) terminal of the auxiliary battery, replacing the auxiliary battery, or recharging the auxiliary battery after being discharged.
      • Removing and installing or replacing the radio receiver assembly or navigation ECU.
    • After replacing the radio receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

    Refer to PRECAUTION [12/2019 - 10/2022]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 22

  4. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

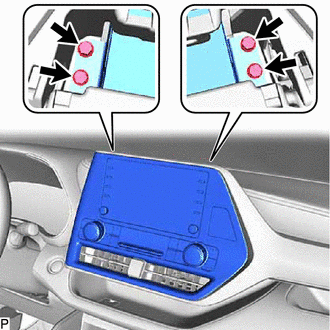

    1. Remove the 4 bolts.
      GTY943489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

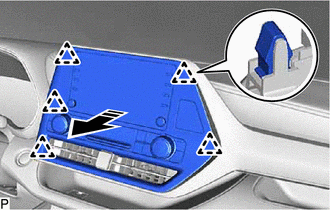

    2. Pull the radio and display assembly with air conditioning control as shown in the illustration to disengage the 5 clips.
      GTY913893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

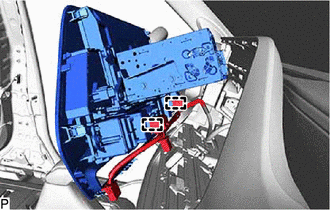

    3. Disconnect each connector.
    4. Disengage the 2 clamps to remove the radio and display assembly with air conditioning control.
      GTY916364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

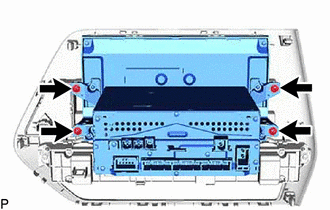

    1. Remove the 4 screws.
      GTY916666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

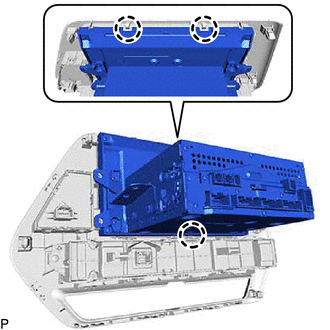

    2. Disengage the 3 claws to remove the radio and display receiver assembly with bracket.
      GTY916665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 RADIO RECEIVER BRACKET (for 8 Inch Display)

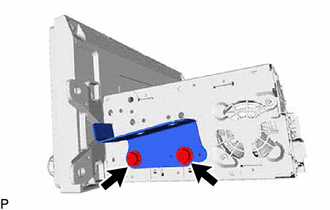

    1. Remove the 2 screws and No. 1 radio receiver bracket.
      GTY916366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 RADIO RECEIVER BRACKET (for 8 Inch Display)

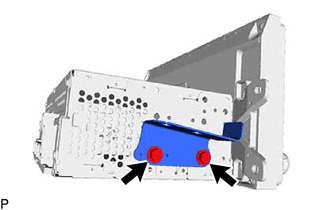

    1. Remove the 2 screws and No. 2 radio receiver bracket.
      GTY916365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display)
  9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 22

  10. REMOVE MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 2

  11. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 25

  12. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)

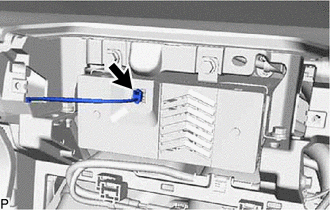

    1. Disconnect the connector.
      GTY943418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

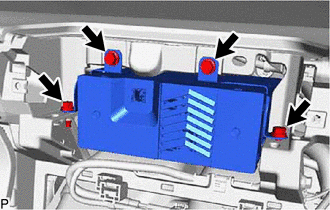

    2. Remove the 4 bolts.
      GTY916363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the radio receiver assembly with bracket.
  13. REMOVE NO. 1 RADIO BRACKET (for 12.3 Inch Display)

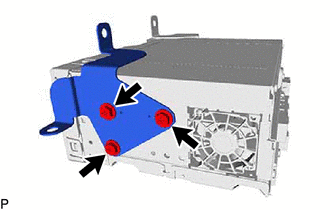

    1. Remove the 3 screws and No. 1 radio bracket.
      GTY916362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 RADIO BRACKET (for 12.3 Inch Display)

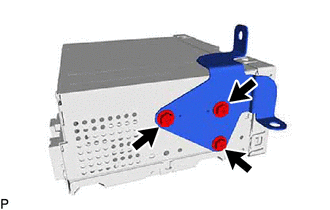

    1. Remove the 3 screws and No. 2 radio bracket.
      GTY916361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIO RECEIVER ASSEMBLY (for 12.3 Inch Display)
