Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display)
  2. INSTALL NO. 2 RADIO RECEIVER BRACKET (for 8 Inch Display)
    1. Install the No. 2 radio receiver bracket with the 2 screws.
  3. INSTALL NO. 1 RADIO RECEIVER BRACKET (for 8 Inch Display)
    1. Install the No. 1 radio receiver bracket with the 2 screws.
  4. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
    1. Engage the 3 claws to temporarily install the radio and display receiver assembly with bracket.
    2. Install the radio and display receiver assembly with bracket with the 4 screws.
  5. INSTALL RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)
    1. Engage the 2 clamps.
    2. Connect each connector.

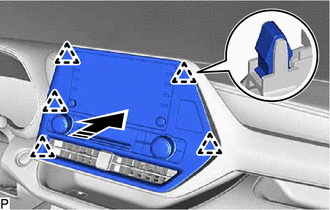

    3. Engage the 5 clips to temporarily install the radio and display assembly with air conditioning control as shown in the illustration.
      GTY920179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the radio and display assembly with air conditioning control with the 4 bolts.
  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 24

  7. INSTALL RADIO RECEIVER ASSEMBLY (for 12.3 Inch Display)
  8. INSTALL NO. 2 RADIO BRACKET (for 12.3 Inch Display)
    1. Install the No. 2 radio bracket with the 3 screws.
  9. INSTALL NO. 1 RADIO BRACKET (for 12.3 Inch Display)
    1. Install the No. 1 radio bracket with the 3 screws.
  10. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)
    1. Connect each connector.
    2. Install the radio receiver assembly with bracket with the 4 bolts.
    3. Connect the connector.
  11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 21

  12. INSTALL MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 4

  13. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 24
