Installation [12/2019 - ]: Procedure

  1. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

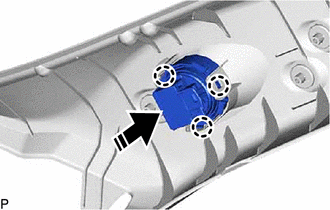

    1. Engage the 3 claws to install the front No. 3 speaker assembly as shown in the illustration.
      GTY895984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL FRONT PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 49 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 47 [10/2022 - ]

  3. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1
