Removal [12/2019 - ]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY (w/o Woofer)

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  4. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  5. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  6. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

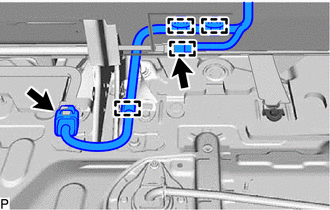

    1. Disengage the 4 clamps.
      GTY881266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 connectors.

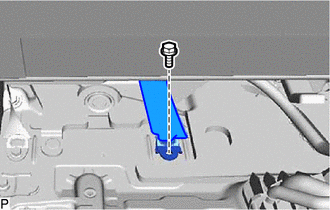

    3. Remove the bolt.
      GTY881259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

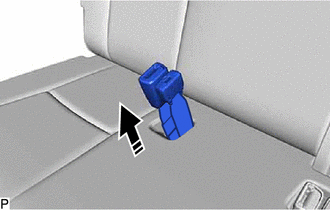

    4. Remove the rear No. 2 seat inner belt sub-assembly RH from the rubber band of the rear seat cushion assembly as shown in the illustration.
      GTY849265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
