Removal [12/2019 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
    1. Remove the rear seat headrest assembly.
  2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH
    1. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the rearmost position.

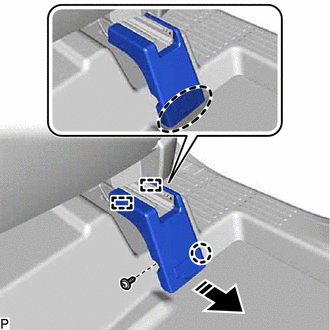

    2. Remove the screw.
      GTY900475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    3. Disengage the claw and 2 guides as shown in the illustration to remove the front outer seat track bracket cover LH.
  3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Gasoline Model)

    HINT:

    Use the same procedure as for the front outer seat track bracket cover LH.

  4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for HV Model)

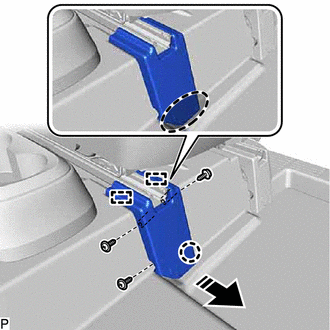

    1. Remove the 3 screws.
      GTY889803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the claw and 2 guides as shown in the illustration to remove the front inner seat track bracket cover LH.
  5. REMOVE REAR INNER SEAT TRACK BRACKET COVER LH
    1. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the foremost position.

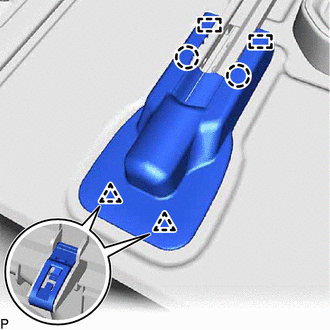

    2. Disengage the 2 claws, 2 clips and 2 guides to remove the rear inner seat track bracket cover LH.
      GTY938429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH
    1. Disengage the 6 clips and 2 guides to remove the rear outer seat track bracket cover LH.
      GTY893768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  8. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
    1. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the rearmost position.

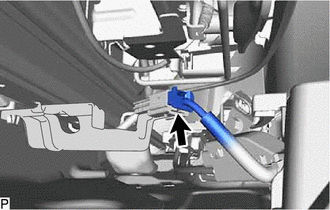

    2. Disconnect the connector.
      GTY893746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

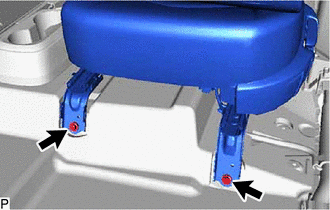

    3. Remove the 2 bolts.
      GTY893745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Operate the seat track adjusting handle and move the rear No. 1 seat assembly LH to the foremost position.

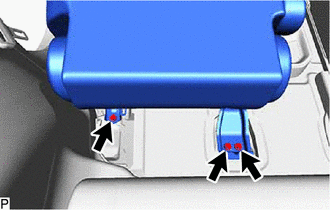

    5. Remove the 3 bolts.
      GTY893743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

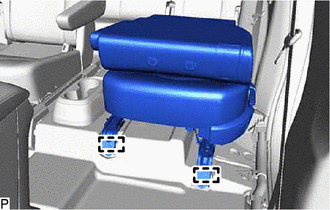

    6. Disengage the 2 pins and remove the rear No. 1 seat assembly LH.
      NOTE:

      Be careful not to damage the rear No. 1 seat assembly LH, vehicle body or vehicle interior.

      GTY941674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
