Disassembly [12/2019 - ]: Procedure

  1. REMOVE CENTER ARMREST HINGE COVER

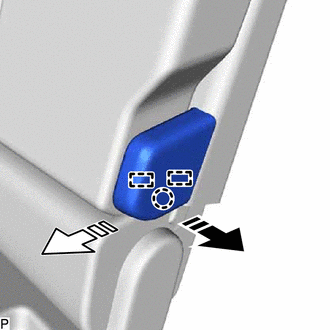

    1. Disengage the claw and 2 guides as shown in the illustration to remove the center armrest hinge cover.
      GTY851767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY

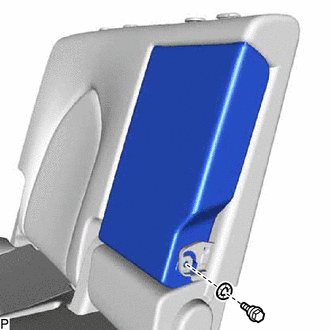

    1. Remove the bolt and washer.
      GTY908061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

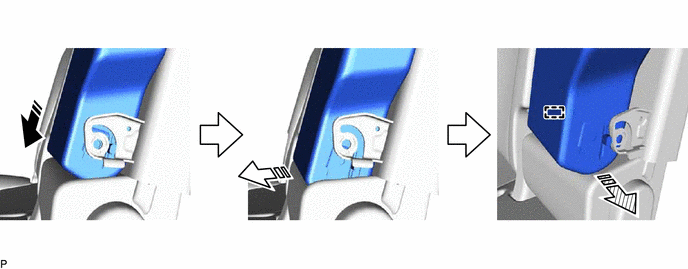

    2. Disengage the guide as shown in the illustration to remove the rear seat center armrest assembly.
      GTY880599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -

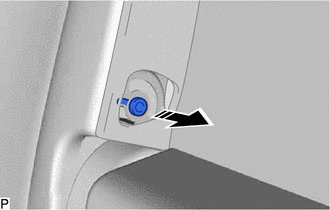

  3. REMOVE REAR SEAT ARMREST HINGE SHIM
    1. Remove the rear seat armrest hinge shim as shown in the illustration.
      GTY903422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY

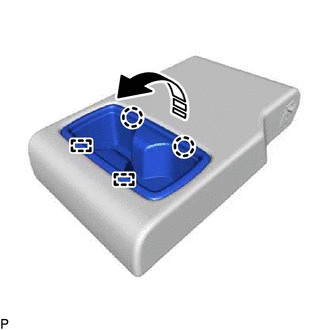

    1. Disengage the 2 claws and 2 guides as shown in the illustration to remove the rear seat center armrest cup holder sub-assembly.
      GTY890403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE SEAT ADJUSTER COVER CAP

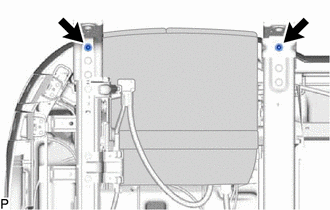

    1. Remove the 2 seat adjuster cover caps.
      GTY908069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

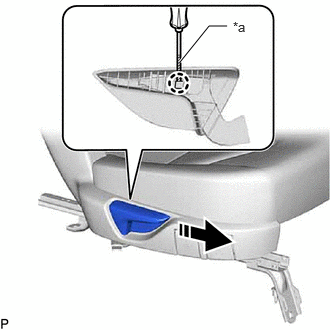

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration and remove the reclining adjuster release handle RH.
      GTY889131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

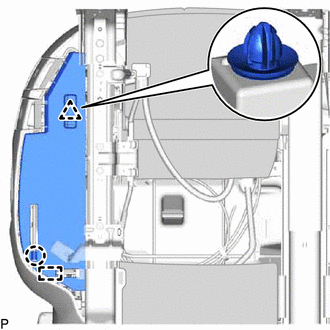

  7. REMOVE REAR SEAT CUSHION UNDER COVER RH
    1. Disengage the claw, clip and guide to remove the rear seat cushion under cover RH.
      GTY908068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

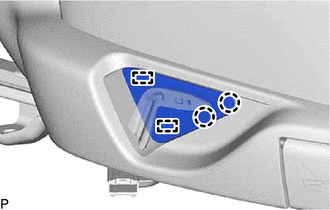

  8. REMOVE SEAT ADJUSTER COVER CAP RH
    1. Disengage the 2 claws and 2 guides to remove the seat adjuster cover cap RH.
      GTY942865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH

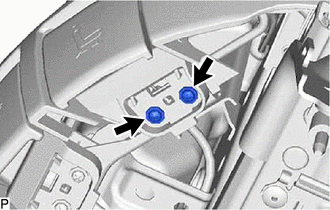

    1. Remove the 2 screws.
      GTY913830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

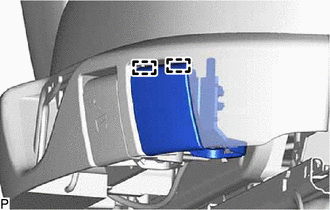

    2. Disengage the 2 guides.
      GTY913828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

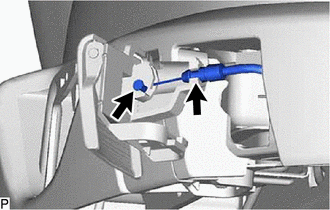

    3. Disconnect the rear seat reclining control cable to remove the rear seat No. 1 lock control lever sub-assembly RH.
      GTY913829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH

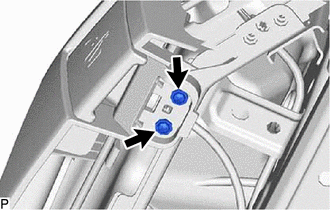

    1. Remove the 2 screws.
      GTY942864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

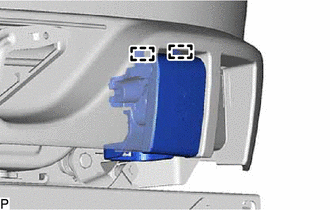

    2. Disengage the 2 guides.
      GTY913826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

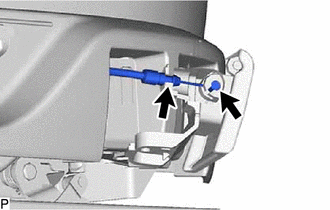

    3. Disconnect the rear No. 1 seat track control cable assembly RH to remove the rear seat No. 2 lock control lever sub-assembly RH.
      GTY913824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEAT CUSHION MOULDING RH

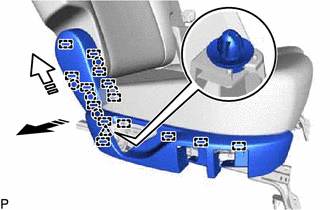

    1. Disengage the 5 claws, clip and 14 guides as shown in the illustration to remove the rear seat cushion moulding RH.
      GTY912650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  12. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

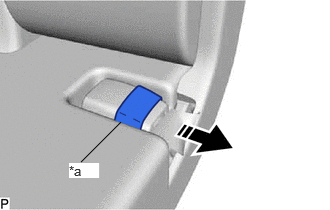

    1. Remove the rear seat inner belt assembly from the rubber band of the separate type rear seat cushion cover as shown in the illustration.
      GTY922024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band
      Remove in this Direction

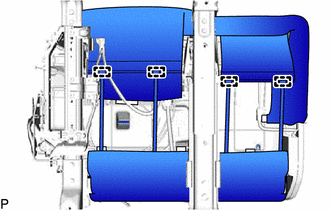

    2. Disengage the 4 hooks.
      GTY908019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Seat Heater System:

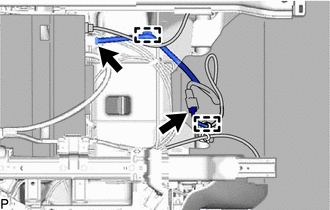

      1. Disconnect the 2 connectors.
        GTY923431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 clamps.

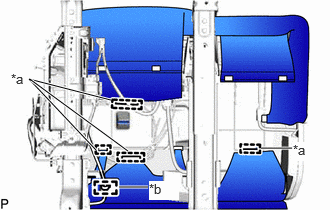

    4. Disengage the 4 hooks and clamp.
      GTY865605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Clamp

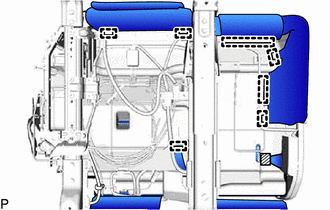

    5. Disengage the fastener and 7 hooks.
      GTY876379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

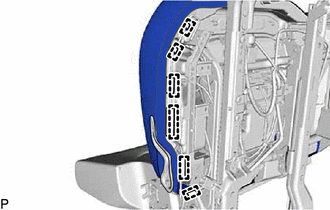

    6. Disengage the 6 hooks and remove the separate type rear seat cushion cover with pad.
      GTY908048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER

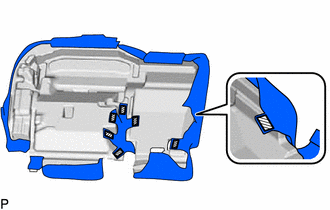

    1. Disengage the 7 fasteners.
      GTY887528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

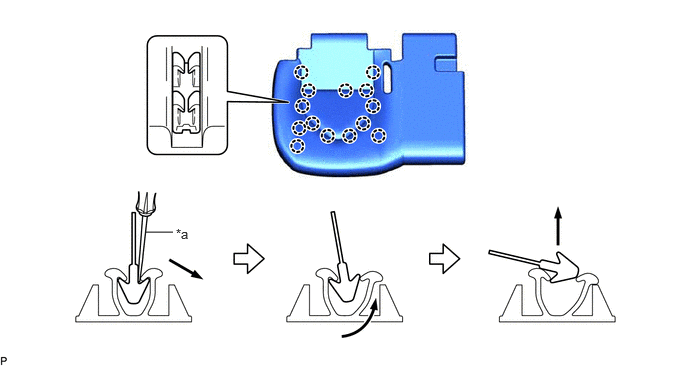

    2. Using a screwdriver, disengage the 14 claws as shown in the illustration and remove the bench type rear seat cushion cover from the rear seat cushion pad RH.
      GTY894172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  14. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 10

  15. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY RH (w/ Seat Heater System)
    1. Disconnect the connector.
      GTY907798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the seat heater control sub-assembly RH.
  16. REMOVE REAR SEAT HINGE COVER

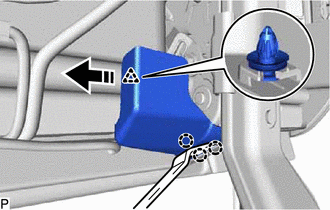

    1. Using a moulding remover, disengage the clip and 3 claws as shown in the illustration to remove the rear seat hinge cover.
      GTY879069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  18. REMOVE REAR SEAT CUSHION REAR MOULDING RH

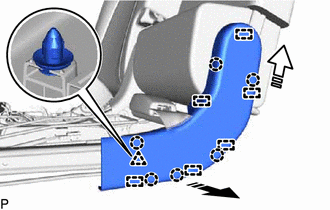

    1. Disengage the 6 claws, clip and 6 guides as shown in the illustration to remove the rear seat cushion rear moulding RH.
      GTY891627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  19. REMOVE REAR SEAT INNER BELT ASSEMBLY

    Refer to PROCEDURE - Step 3

  20. REMOVE REAR SEATBACK LOCK STRIKER COVER RH

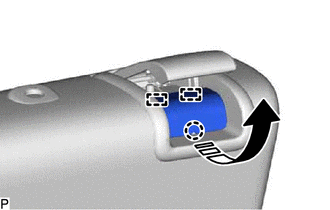

    1. Disengage the claw and 2 guides as shown in the illustration to remove the rear seatback lock striker cover RH.
      GTY901874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

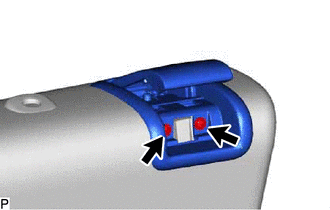

    1. Remove the 2 screws.
      GTY908038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

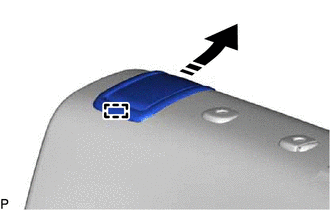

    2. Disengage the guide as shown in the illustration.
      GTY845829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

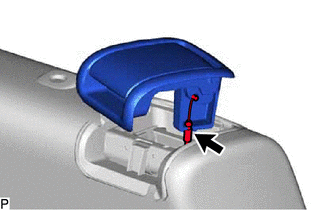

    3. Disconnect the rear seat reclining control cable to remove the reclining remote control lever sub-assembly RH.
      GTY908006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR SEATBACK COVER RH

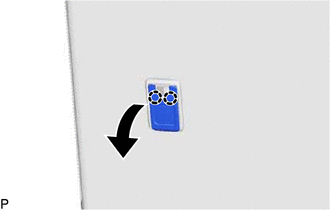

    1. Disengage the 2 claws as shown in the illustration.
      GTY908004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for each rear seatback cover RH.

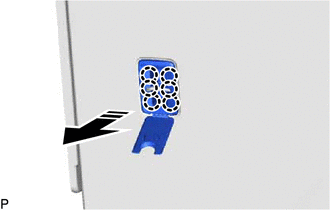

    2. Disengage the 6 claws as shown in the illustration to remove the rear seatback cover RH.
      GTY906527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for each rear seatback cover RH.

  23. DISCONNECT REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

    Refer to PROCEDURE - Step 17

  24. REMOVE REAR SEAT SHOULDER BELT COVER

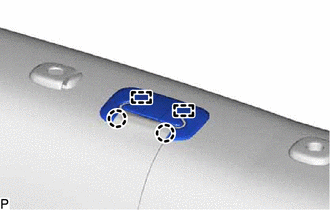

    1. Disengage the 2 claws and 2 guides to remove the rear seat shoulder belt cover.
      GTY941573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE SEAT BELT ANCHOR COVER CAP
    1. Disengage the 2 guides as shown in the illustration to remove the seat belt anchor cover cap.
      GTY840440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH
    1. Open the 2 fasteners as shown in the illustration.
      GTY928874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

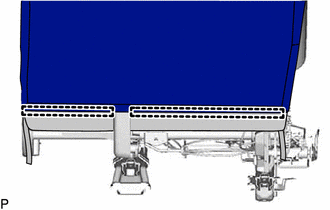

    2. Disengage the 2 hooks.
      GTY908015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

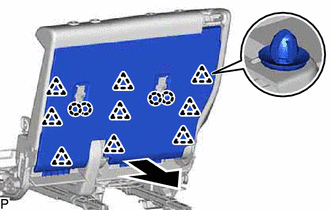

    3. Disengage the 9 clips and 4 claws as shown in the illustration.
      GTY908012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

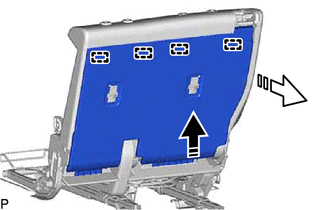

    4. Disengage the 4 guides as shown in the illustration to remove the rear seatback board sub-assembly RH.
      GTY891598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  27. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

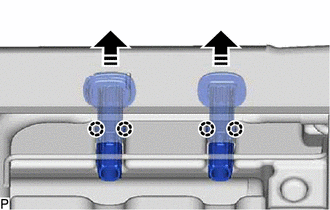

    1. Disengage the 4 claws as shown in the illustration to remove the 2 rear seat headrest supports.
      GTY942244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for each rear seat headrest support.

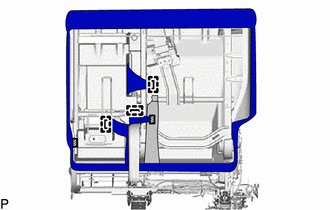

    2. Disengage the fastener and 3 hooks and remove the separate type rear seatback cover with pad.
      GTY860617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  28. REMOVE SEPARATE TYPE REAR SEATBACK COVER

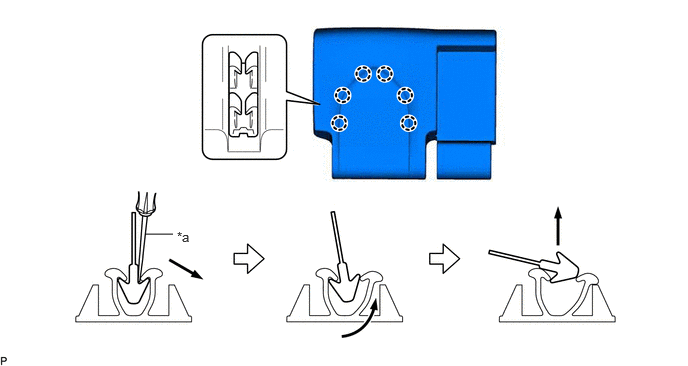

    1. Using a screwdriver, disengage the 6 claws as shown in the illustration and remove the separate type rear seatback cover from the separate type rear seatback pad.
      GTY909813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  29. REMOVE SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 21

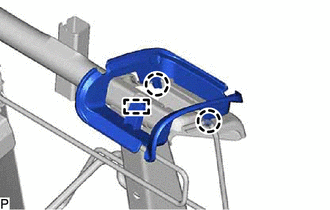

  30. REMOVE RECLINING REMOTE CONTROL BEZEL RH
    1. Disengage the 2 claws and guide to remove the reclining remote control bezel RH.
      GTY941598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

    Refer to PROCEDURE - Step 22

  32. REMOVE REAR SEAT CUSHION HINGE COVER RH

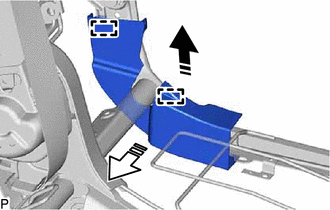

    1. Disengage the 2 guides as shown in the illustration to remove the rear seat cushion hinge cover RH.
      GTY869484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  33. REMOVE REAR SEAT HINGE COVER LH

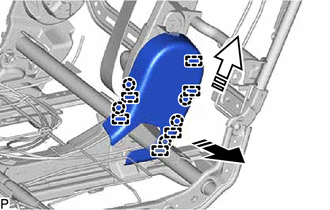

    1. Disengage the 5 claws and 6 guides as shown in the illustration to remove the rear seat hinge cover LH.
      GTY880099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  34. REMOVE REAR NO. 1 SEAT RECLINING COVER LH

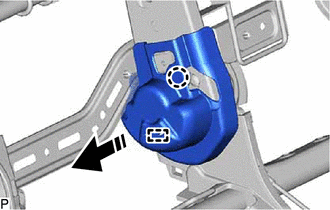

    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 1 seat reclining cover LH.
      GTY889951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

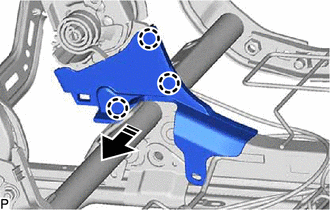

  35. REMOVE REAR SEAT HINGE COVER
    1. Disengage the 3 claws as shown in the illustration to remove the rear seat hinge cover.
      GTY939921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  36. REMOVE REAR NO. 1 SEAT RECLINING COVER RH

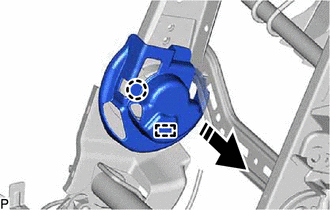

    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 1 seat reclining cover RH.
      GTY926672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

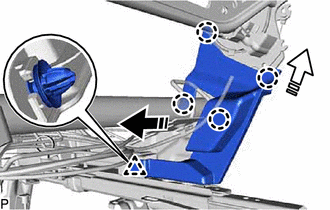

  37. REMOVE RECLINING HINGE COVER RH
    1. Disengage the 4 claws and clip as shown in the illustration to remove the reclining hinge cover RH.
      GTY850539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

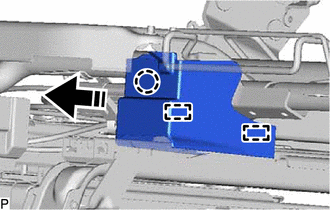

  38. REMOVE REAR SEAT CUSHION HINGE LOWER COVER RH
    1. Disengage the claw and 2 guides as shown in the illustration to remove the rear seat cushion hinge lower cover RH.
      GTY859484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  39. REMOVE REAR NO. 1 SEAT CUSHION HINGE UPPER COVER RH

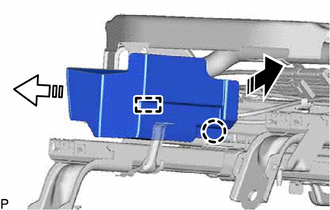

    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 1 seat cushion hinge upper cover RH.
      GTY870275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  40. REMOVE REAR SEAT WIRE RH

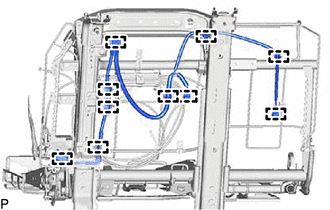

    1. w/o Seat Heater System:
      GTY908097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 10 clamps and remove the rear seat wire RH.

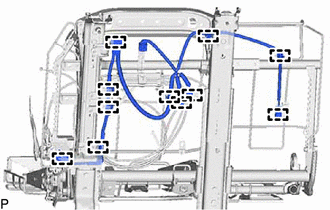

    2. w/ Seat Heater System:
      GTY908195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 11 clamps and remove the rear seat wire RH.
  41. REMOVE REAR NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY RH

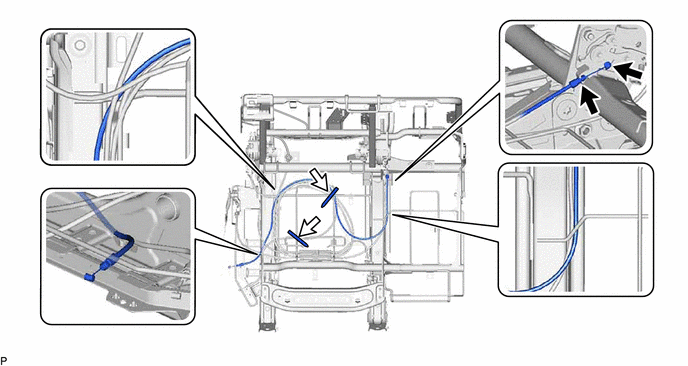

    1. Remove the 2 wire harness clamps.
      GTY943034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clamp Wire Harness Clamp
    2. Disengage the 2 clamps and remove the rear No. 1 seat track control cable assembly RH.

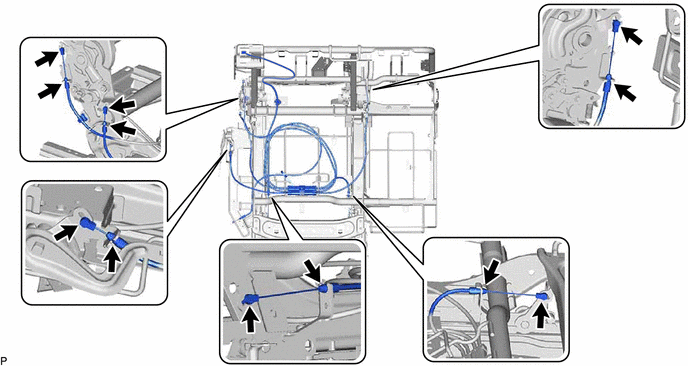

  42. REMOVE REAR SEAT RECLINING CONTROL CABLE
    1. Disengage the 12 clamps.
      GTY908194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

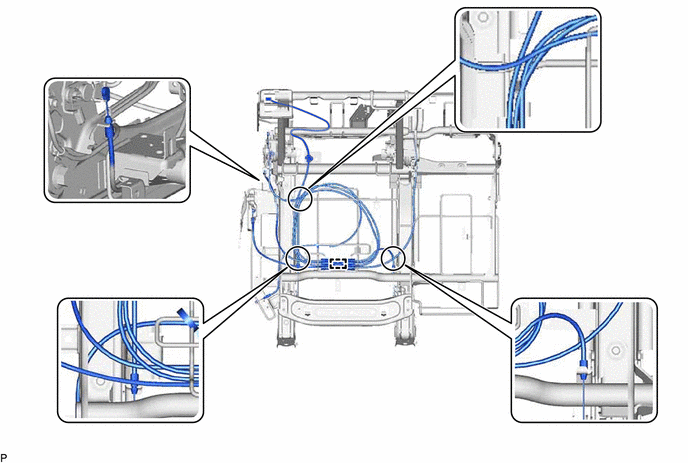

    2. Disengage the clamp and remove the rear seat reclining control cable.
      GTY908191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE NO. 1 RECLINING CONTROL LINK SUB-ASSEMBLY RH

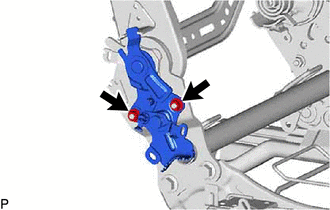

    1. Remove the 2 nuts and No. 1 reclining control link sub-assembly RH.
      GTY908192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

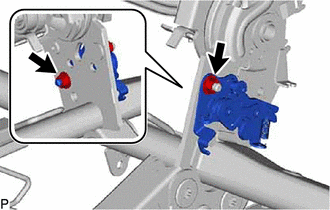

  44. REMOVE NO. 2 RECLINING CONTROL LINK SUB-ASSEMBLY RH
    1. Remove the 2 nuts and No. 2 reclining control link sub-assembly RH.
      GTY908189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

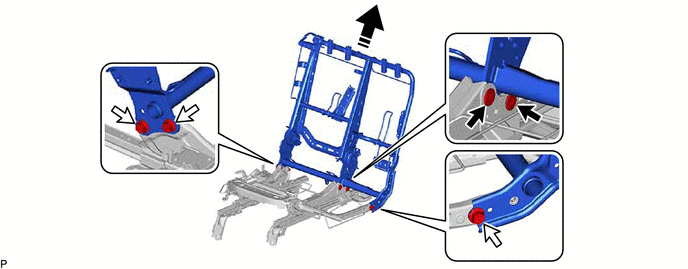

  45. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH
    1. Using a T55 "TORX" socket wrench, remove the 2 bolts (A).
      GTY852384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt (A) Bolt (B)
      Remove in this Direction - -
    2. Remove the 3 bolts (B).
    3. Remove the rear seatback frame sub-assembly RH from the No. 1 seat cushion frame sub-assembly RH as shown in the illustration.

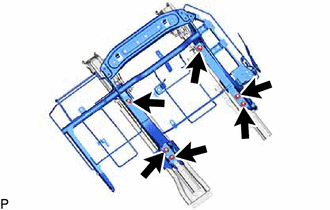

  46. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY RH
    1. Remove the 6 nuts and rear seat cushion frame sub-assembly RH.
      GTY908267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
