Installation [12/2019 - ]: Procedure

  1. INSTALL SEAT MEMORY SWITCH

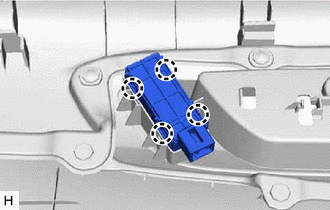

    1. GTY899072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 claws to install the seat memory switch to the front door trim board sub-assembly.

  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  3. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 41 [10/2022 - ]

  5. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 42 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 42 [10/2022 - ]

  6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 44 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 44 [10/2022 - ]

  7. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [12/2019 - ]
