Installation [12/2019 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.
    2. Engage the clamp.

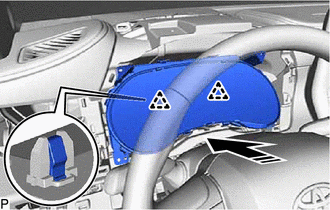

    3. Engage the 2 clips as shown in the illustration.
      GTY856049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the combination meter assembly with the 4 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 36 [10/2022 - ]

  3. INSTALL TRIP SWITCH

    See step  1

  4. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - ]

  5. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 40 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - ]

  6. INSTALL INSTRUMENT PANEL FINISH END PANEL LH

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 40 [10/2022 - ]

  7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1
