Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  2. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to PROCEDURE - Step 4

  3. REMOVE MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 2

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 25

  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

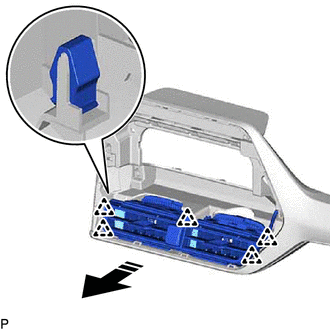

    1. Disengage the 5 clips to remove the No. 3 instrument panel register assembly as shown in the illustration.
      GTY933383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

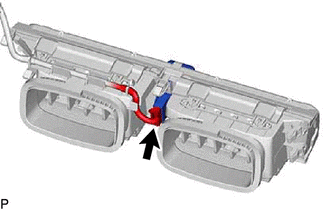

    1. Disconnect the connector.
      GTY923412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

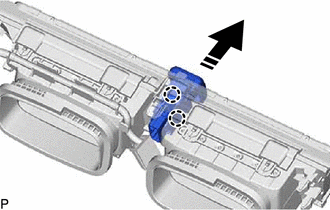

    2. Disengage the 2 claws and remove the hazard warning signal switch assembly as shown in the illustration.
      GTY883185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
