Removal [12/2019 - ]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  3. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  5. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

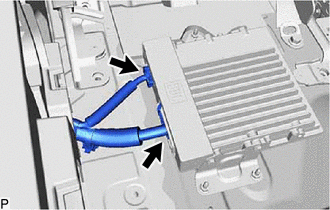

    1. Disconnect the 2 connectors.
      GTY916534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

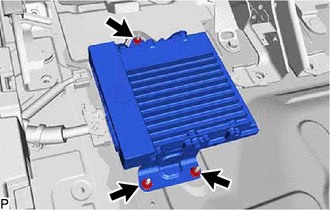

    2. Remove the 3 nuts and remove the stereo component amplifier assembly with bracket.
      GTY916533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 AMPLIFIER BRACKET

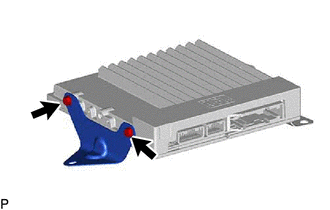

    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY943457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 AMPLIFIER BRACKET

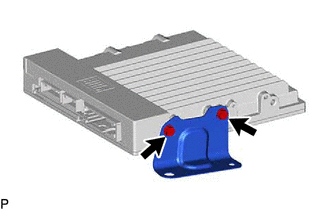

    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY916532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
