Removal [12/2019 - ]: Procedure

  1. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE REAR CONSOLE LOWER BOX

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - ]

  4. REMOVE NO. 2 CONSOLE BOX HOLE COVER

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

  5. REMOVE REAR CONSOLE COVER

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  6. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. REMOVE CONSOLE REAR END PANEL

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  8. REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

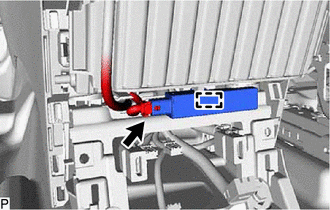

    1. Disengage the clamp.
      GTY940421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 2 indoor electrical key antenna assembly.
      NOTE:

      Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.
