Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 29 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 28 [11/2023 - ]

  4. REMOVE INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 29 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 29 [11/2023 - ]

  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 30 [11/2023 - ]

  6. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 31 [11/2023 - ]

  7. REMOVE GLOVE BOX LIGHT ASSEMBLY

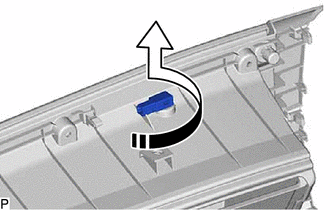

    1. Turn the glove box light assembly as shown in the illustration to remove it.
      GTY860824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
