Installation [12/2019 - ]: Procedure

  1. INSTALL GLOVE BOX LIGHT ASSEMBLY

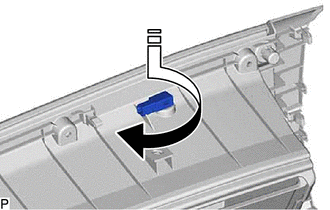

    1. Turn the glove box light assembly as shown in the illustration to install it.
      GTY875295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

  4. INSTALL INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - ]

  5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  6. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 51 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  7. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 52 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 50 [10/2022 - ]
