Installation [12/2019 - ]: Procedure

  1. INSTALL NO. 2 AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connector.

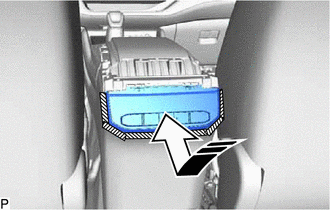

    2. Connect the No. 2 air conditioning control assembly as shown in the illustration.
      GTY853330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect in this Direction

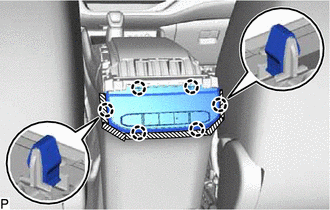

    3. Engage the 6 claws to install the No. 2 air conditioning control assembly.
      GTY926626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    4. Remove the protective tape.
  2. INSTALL REAR CONSOLE COVER

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  3. INSTALL CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 12 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

  4. INSTALL NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 13 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]
