Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2019 - 11/2023]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE BATTERY SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 1

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for 2GR-FKS: Refer to PROCEDURE - Step 1

    for A25A-FXS: Refer to PROCEDURE - Step 2

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022]

  4. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 9

  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    HINT:

    Disconnect the front door opening trim weatherstrip to the extent that allows the removal of the lower center pillar garnish.

  6. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 13

  7. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 14

  8. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    HINT:

    Disconnect the rear door opening trim weatherstrip to the extent that allows the removal of the lower center pillar garnish.

  9. REMOVE LAP BELT OUTER ANCHOR COVER

    Refer to PROCEDURE - Step 9

  10. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE LOWER CENTER PILLAR GARNISH

    Refer to PROCEDURE - Step 18

  12. REMOVE SIDE NO. 2 AIRBAG SENSOR
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Disconnect the connector from the side No. 2 airbag sensor.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector.

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2019 - 11/2023]

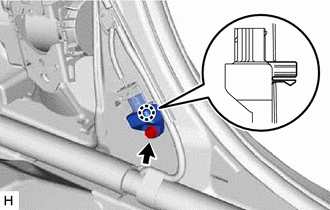

    4. Remove the bolt and disengage the claw to remove the side No. 2 airbag sensor.
      GTY1013806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
