Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  3. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to REMOVAL [10/2022 - ]

  4. REMOVE REAR SUSPENSION ARM COVER LH

    See step  3

  5. REMOVE REAR SUSPENSION ARM COVER RH

    HINT:

    Perform the same procedure as for the LH side.

  6. REMOVE REAR AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR AXLE SHAFT NUT RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  8. SEPARATE REAR FLEXIBLE HOSE LH
    1. Remove the bolt and separate the rear flexible hose LH from the rear upper control arm assembly LH.
      GTY911646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE REAR FLEXIBLE HOSE RH

    HINT:

    Perform the same procedure as for the LH side.

  10. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY (for AWD)
    1. Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear skid control sensor.
      GTY871513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
      • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
      • Be careful not to damage the rear skid control sensor or connector cover.
  11. DISCONNECT NO. 1 PARKING BRAKE WIRE ASSEMBLY (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  12. REMOVE REAR SKID CONTROL SENSOR LH (for AWD)

    Refer to PROCEDURE - Step 6

  13. REMOVE REAR SKID CONTROL SENSOR RH (for AWD)

    HINT:

    Perform the same procedure as for the LH side.

  14. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)

    Refer to REMOVAL [12/2019 - 11/2023]

  15. REMOVE REAR STABILIZER LINK ASSEMBLY LH

    See step  4

  16. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  17. REMOVE REAR STABILIZER BAR

    See step  6

  18. REMOVE REAR LOWER STABILIZER BRACKET

    See step  7

  19. REMOVE REAR COIL SPRING LH

    See step  5

  20. REMOVE REAR COIL SPRING RH

    HINT:

    Perform the same procedure as for the LH side.

  21. REMOVE REAR LOWER COIL SPRING INSULATOR LH

    See step  6

  22. REMOVE REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  23. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  7

  24. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  25. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    See step  8

  26. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  27. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Remove the bolt and nut and separate the rear upper control arm assembly LH from the rear axle carrier sub-assembly LH.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY917469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  29. DRAIN DIFFERENTIAL OIL (for AWD)

    for Dynamic Torque Control AWD: Refer to PROCEDURE - Step 1

    for Dynamic Torque Vectoring AWD: Refer to PROCEDURE - Step 2

  30. REMOVE REAR DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 15

  31. REMOVE REAR DRIVE SHAFT ASSEMBLY RH (for AWD)

    HINT:

    Use the same procedure as for the LH side.

  32. REMOVE REAR DRIVE SHAFT LH SNAP RING (for AWD)

    Refer to PROCEDURE - Step 16

  33. REMOVE REAR DRIVE SHAFT RH SNAP RING (for AWD)

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY (for Dynamic Torque Control AWD)

    Refer to PROCEDURE - Step 5

  35. REMOVE TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY (for Dynamic Torque Vectoring AWD)

    Refer to PROCEDURE - Step 6

  36. REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION (for AWD)

    Refer to PROCEDURE - Step 4

  37. SEPARATE FRAME WIRE (w/ Wire Harness)
    1. w/ Height Control Sensor:
      1. GTY917485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disengage the clamp.

      2. GTY917484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Remove the nut to separate the frame wire from the rear suspension member sub-assembly.

    2. for AWD:
      GTY917483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disengage the clamp to separate the frame wire from the rear suspension member sub-assembly.
    3. for 2WD:
      1. GTY943670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Remove the bolt and separate the frame wire from the rear suspension member sub-assembly.

  38. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Using an engine lifter, 2 attachments and 2 wooden blocks or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

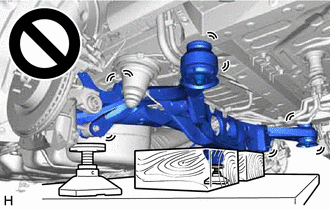

      GTY917475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.

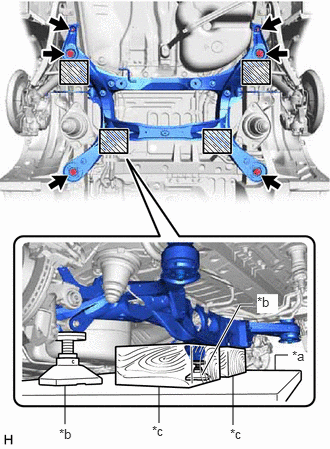

      GTY848510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      *c Wooden Block
      Attachment and Wooden Block Placement Location
    2. Remove the 4 bolts, 2 nuts, 2 rear lower suspension braces, rear lower suspension member stopper LH and rear lower suspension member stopper RH.
    3. Slowly lower the rear suspension member sub-assembly.
      NOTE:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  39. REMOVE REAR SUSPENSION MEMBER UPPER STOPPER
    1. Remove the 2 rear suspension member upper stoppers from the rear suspension member sub-assembly.

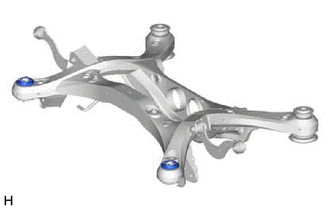

      GTY917467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE REAR SUSPENSION MEMBER LOWER STOPPER RETAINER
    1. Remove the 2 rear suspension member lower stopper retainers from the rear suspension member sub-assembly.

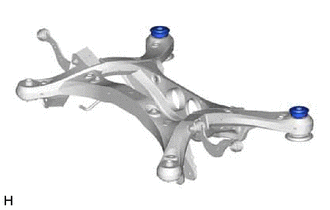

      GTY917486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  2

  42. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  43. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)
    1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      GTY864187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

      GTY680751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the rear suspension member front body mounting cushion while applying lubricant into the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:
      • Set the claws of SST onto the rear suspension member sub-assembly securely as shown in the illustration.
      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member front body mounting cushion may fly out.
      • The rear suspension member front body mounting cushion cannot be reused.

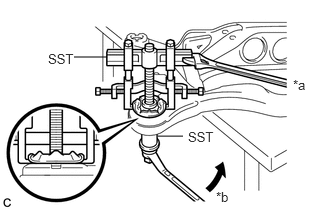

      GTY646084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST and the rear suspension member front body mounting cushion (LH Side) from the rear suspension member sub-assembly.
  44. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.

  45. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH
    1. Using a chisel and hammer, bend the 2 portions of the rear suspension member rear body mount cushion LH rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      GTY932905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion
    2. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

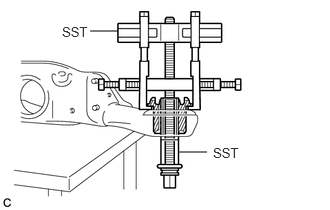

      GTY643234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the rear suspension member rear body mount cushion LH while applying lubricant into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04051
        5. 09958-04011
      NOTE:
      • Set the claws of SST onto the rear suspension member sub-assembly securely as shown in the illustration.
      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member rear body mount cushion LH may fly out.
      • The rear suspension member rear body mount cushion LH cannot be reused.

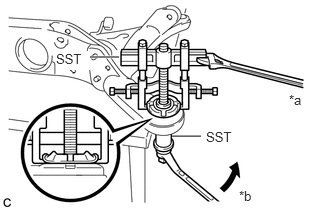

      GTY670287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST and the rear suspension member rear body mount cushion LH from the rear suspension member sub-assembly.
  46. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  47. REMOVE HOLE PLUG
    1. Remove the 13 hole plugs from the rear suspension member sub-assembly as shown in the illustration.

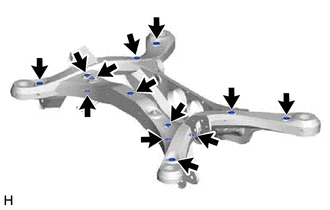

      GTY620411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
