Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 17 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 17 [11/2023 - ]

  4. REMOVE FUEL LID OPENER SWITCH

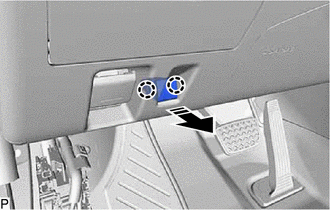

    1. Disengage the 2 claws as shown in the illustration.
      GTY944533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the fuel lid opener switch.
