Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]

  3. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 13 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 11 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 11 [11/2023 - ]

  6. REMOVE FRONT DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  7. REMOVE NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - ]

  8. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 35 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 36 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 36 [10/2022 - ]

  10. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 37 [10/2022 - ]

  11. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 38 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - ]

  12. REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

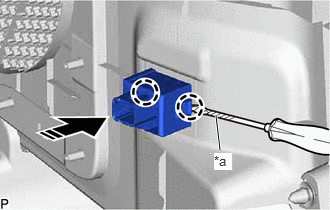

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the rear No. 1 power outlet socket assembly as shown in the illustration.
      GTY879962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
