Removal [12/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]

  3. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 13 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - ]

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 11 [10/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 11 [11/2023 - ]

  6. REMOVE FRONT DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  7. REMOVE NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 33 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 33 [10/2022 - ]

  8. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 35 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 36 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 36 [10/2022 - ]

  10. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 37 [10/2022 - ]

  11. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 38 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - ]

  12. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 12

  13. REMOVE FUEL PUMP CONTROL ECU

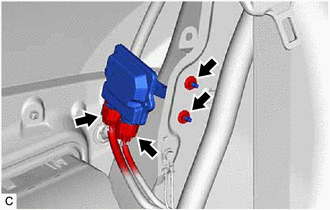

    1. Disconnect the 2 fuel pump control ECU connectors.
      GTY935548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and fuel pump control ECU from the vehicle body.
      NOTE:

      Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

  14. REMOVE FUEL PUMP CONTROL ECU BRACKET
    1. Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
      GTY935549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
