Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 10 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 29 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 28 [10/2022 - 11/2023]

  4. REMOVE INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 29 [10/2022 - 11/2023]

  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 11/2023]

  6. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 32 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - 11/2023]

  7. REMOVE ECU INTEGRATION BOX RH

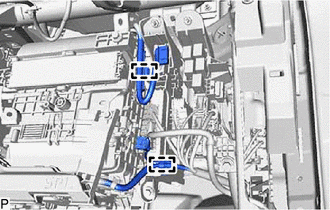

    1. Disconnect each connector.
    2. Disengage the 2 clamps.
      GTY936345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

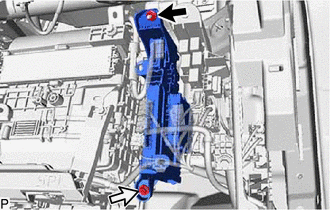

    3. Remove the nut, bolt and ECU integration box RH.
      GTY909025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt
  8. REMOVE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

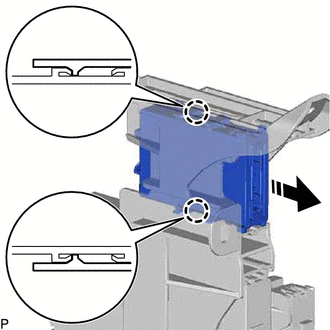

    1. Disengage the 2 claws to remove the central gateway ECU (network gateway ECU) as shown in the illustration.
      GTY916600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:
      • If the ECU integration box RH is deformed or damaged, replace it.
      • Do not bend the 2 claws more than necessary.
