Installation [12/2019 - 11/2023]: Procedure

  1. INSTALL CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

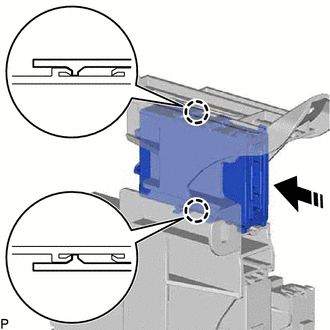

    1. Engage the 2 claws to install the central gateway ECU (network gateway ECU) as shown in the illustration.
      GTY922584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Make sure that the central gateway ECU (network gateway ECU) is securely installed.

  2. INSTALL ECU INTEGRATION BOX RH
    1. Install the ECU integration box RH with the bolt and nut.
    2. Engage the 2 clamps.
    3. Connect each connector.
  3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - ]

  4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

  5. INSTALL INSTRUMENT PANEL FINISH END PANEL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - ]

  6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  7. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 51 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  8. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 52 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 50 [10/2022 - ]
