Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE OUTER MIRROR COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE VISOR HOUSING

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  4. REMOVE LOWER HOUSING

    Refer to PROCEDURE - Step 4 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  5. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

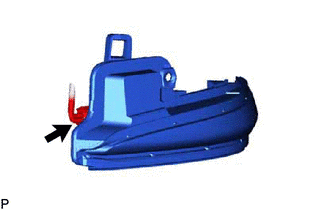

    1. Disconnect the connector to remove the side turn signal light assembly.
      GTY923239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
