Removal [11/2023 - ]: Procedure
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 7
- REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2019 - ]
- REMOVE REAR OUTER SEAT TRACK BRACKET COVER RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 13
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 14
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 11
- REMOVE FRONT DECK SIDE TRIM COVER RH
Refer to PROCEDURE - Step 41
- REMOVE NO. 1 DECK SIDE TRIM COVER
HINT:
Use the same procedure as for the No. 2 deck side trim cover.
Refer to PROCEDURE - Step 33
- REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (w/ Rear Automatic Air Conditioning System)
Refer to PROCEDURE - Step 1
- REMOVE DECK TRIM POCKET COVER (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 35
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 36
- REMOVE ROPE HOOK (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 37
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
Refer to PROCEDURE - Step 49

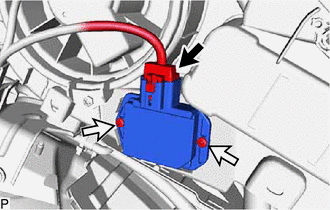

- REMOVE BLOWER MOTOR CONTROL
